- Temperature Output Settings: Single Temperature
- Control Air Pressure: 3 to 15 psi
- Air Connection Outside Diameter: 1/8 in
- Temp. Control Range: 55 Degrees to 85 Degrees F
- Max. Ambient Temp.: 135 Degrees F
- Max. Air Pressure: 25 psi
Specifications
| Part Number | T-4100-1 |
| Brand | Johnson Controls |
| Action Type - Pneumatic Thermostats | Direct Acting |
| No. of Pipes | 1 Pipe |
| Thermostat Application | Heating and Cooling |
| Temperature Output Settings | Single Temperature |
| Control Air Pressure | 3 to 15 psi |
| Height | 2 3/32 in |
| Width | 3 1/8 in |
| Depth | 1 3/4 in |
| Overall Height | 3 3/4 in |
| Overall Width | 2 1/4 in |
| Overall Depth | 7/8 in |
| Air Connection Outside Diameter | 1/8 in |
| Item | Pneumatic Thermostat |
| Air Connections | 5/32 in Barb |
| Temp. Control Range | 55 Degrees to 85 Degrees F |
| Mounting Style | Vertical |
| Includes | Bracket and Cover |
| Max. Ambient Temp. | 135 Degrees F |
| Max. Air Pressure | 25 psi |
| Heating / Cooling | Heating and Cooling |
| Element Type | Bi-Metal |
| 1 Pipe / 2 Pipe | 1 Pipe |
| Single Temp. / Dual Temp. | Single Temperature |
| Air Consumption | 45 or 25 scim |
| Reverse Acting / Direct Acting | Direct Acting |
| Throttling Range | 1 to 5 psi |
| Type | Direct Acting |
| Sensor Type | Bi-Metallic Spring |
| Application | Heat or Cool |
| Action Type | Direct Acting |
| Number of Pipes/Air Flow Output | 1 Pipe, Low Volume |
| Differential Type | Adjustable |
| Manual Indexing Switch | No |
| Control Air Pressure Settings | 13 psig (Day)/ 25 psig (Night) |
| Mounting Direction/Includes Cover | Vertical, Yes |
| Temperature Sensitivity | 1 to 3 psig/ Degrees F |
| Temperature Scale | Celsius/Fahrenheit |
| Mounting Direction | Vertical |
| Maximum Air Pressure | 25 psig |
| Temperature Settings | Single Temperature |
| Number of Pipes | 1 |
| Fitting Connection | Barbed 5/32 in |
| Thermostat Action | Direct |
| Maximum Control Temperature | 85 Degrees F |
| Number of Dials | Single |
| Temperature Control Range | 55 Degrees to 85 Degrees F |
| Air Flow Output | Low Volume |
| Air Restrictor Required | Yes |
| Minimum Control Temperature | 55 Degrees F |
Description

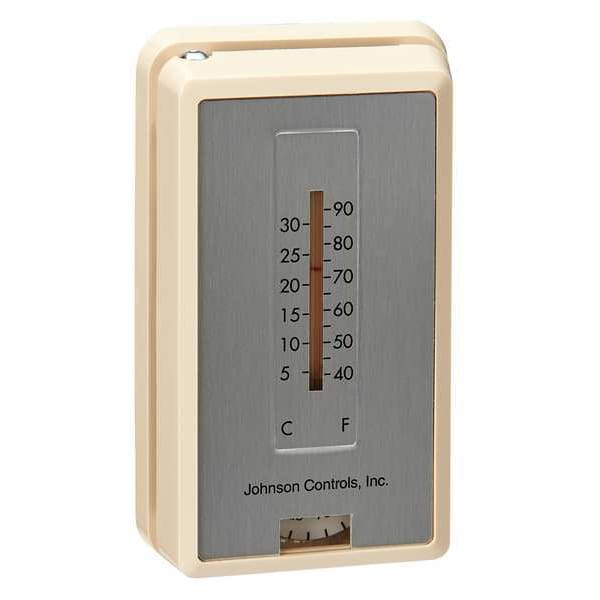

The Johnson Controls T-4100-1 is a direct-acting pneumatic thermostat for heating and cooling applications. This single-temperature thermostat modulates control air pressure from 3 to 15 psi to regulate temperature within a 55 to 85 degrees Fahrenheit range. It includes a bracket and cover and features 5/32-inch barb air connections.
