- Temperature Control Range: -30 to 100 Degrees F
- Voltage: 120 to 277V AC
- Resistive Amps @ 208VAC: 22 A
- Inductive Amps @ 208V: 9.2 A
- Locked Rotor Amps @ 120V: 96 A
- Inductive Amps @ 120V: 16 A
Specifications
| Part Number | A19BBC-2C |
| Brand | Johnson Controls |
| Application | Heat or Cool |
| Switch Action | Open/Close on Rise |
| Switch Type | SPDT |
| Number of Cooling Stages | 1 |
| Number of Heating Stages | 1 |
| Overall Width | 2-1/8 in |
| Overall Height | 4-3/8 in |
| Overall Depth | 1-13/16 in |
| Temperature Control Range | -30 to 100 Degrees F |
| Voltage | 120 to 277V AC |
| Mounting | Flat Surface |
| Item | Line Voltage Mechanical Thermostat |
| Standards | CSA LR948/4813 02, UL E6688 |
| Enclosure Type | Galvanized/Steel |
| Sensor Type | Hydraulic Air Coil |
| Contact Rating Resistive @ 277V | 22 A |
| Resistive Amps @ 208VAC | 22 A |
| Inductive Amps @ 208V | 9.2 A |
| Locked Rotor Amps @ 120V | 96 A |
| Includes | Remote Sensing Bulb |
| Contact Rating Resistive @ 240V | 22 A |
| Inductive Amps @ 120V | 16 A |
| Number of Switches | 1 |
| Inductive Amps @ 240V | 8 A |
| Locked Rotor Amps @ 240V | 48 A |
| Contact Rating Resistive @ 120V | 22 A |
| Number of Relay Inputs | 1 |
| Number of Relay Outputs | 1 |
| Minimum Operating Temperature | -30 Degrees F |
| Enclosure Color | Gray |
| Temperature Differential | 3 to 12 Degrees F |
| Temperature Scale | Fahrenheit |
| Maximum Operating Temperature | 100 Degrees F |
| Temperature Sensitivity | +/-2 Degrees F |
| Differential Type | Fixed |
| Maximum Control Temperature | 100 Degrees F |
| Minimum Control Temperature | -30 Degrees F |
| Full Load Amps @ 240V AC | 8 A |
| Full Load Amps @ 120V AC | 16 A |
| Enclosure Finish | Galvanized |
| Number of Poles | 1 |
| Pilot Duty Rating | 125 VA |
| Enclosure NEMA Rating | 1 |
| Programming Capability | Not Programmable |
| Housing Material | Steel |
Description

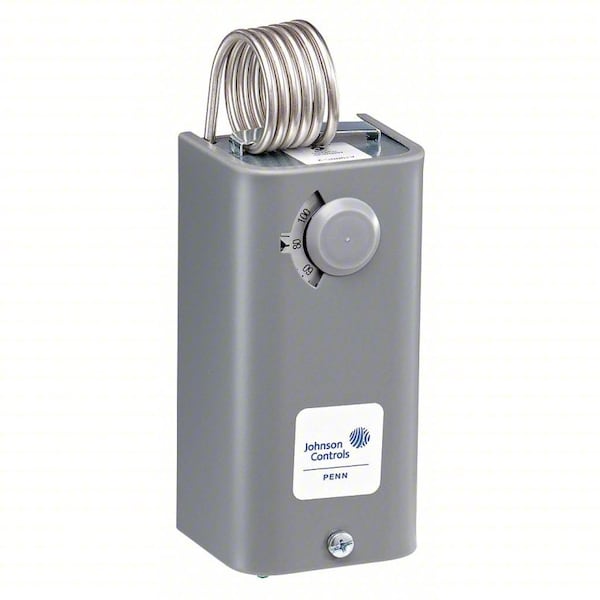

The Johnson Controls A19BBC-2C is a line voltage mechanical thermostat. It uses a hydraulic air coil sensor to control heating or cooling, switching via an SPDT contact. This model operates within a -30 to 100 degrees Fahrenheit temperature range at 120 to 277V AC and is CSA and UL listed.
