- Sensor Diameter: 3/8 in
- Temperature Control Range: 100 to 240 Degrees F
- Voltage: 24 to 600V AC
- Inductive Amps @ 240V: 6 A
- Resistive Amps @ 208VAC: 9.2 A
- Locked Rotor Amps @ 240V: 36 A
Specifications
| Part Number | A19ADB-2C |
| Brand | Johnson Controls |
| Compatible System Type | Hot Water Heating Controls Well Immersion LIT-125025 |
| Application | Heat or Cool |
| Switch Action | Open on Rise |
| Switch Type | SPST |
| Number of Cooling Stages | 1 |
| Capillary Length | 72" |
| Sensing Bulb Dia. | 3/8 in |
| Overall Height | 4-7/16 in |
| Sensor Diameter | 3/8 in |
| Overall Width | 2-3/16 in |
| Overall Depth | 1-13/16 in |
| Sensor Length | 3 1/2 in |
| Bulb Length | 3 1/2 in |
| Number of Heating Stages | 1 |
| Temperature Control Range | 100 to 240 Degrees F |
| Control Type | Knob |
| Voltage | 24 to 600V AC |
| Mounting | Immersion Well |
| Item | Line Voltage Mechanical Thermostat |
| Inductive Amps @ 240V | 6 A |
| Resistive Amps @ 208VAC | 9.2 A |
| Number of Switches | 1 |
| Contact Rating Resistive @ 240V | 8 A |
| Contact Rating Resistive @ 120V | 16 A |
| Enclosure Type | Galvanized/Steel |
| Standards | CSA LR948/4813 02, UL E6688 |
| Locked Rotor Amps @ 240V | 36 A |
| Inductive Amps @ 120V | 10 A |
| Locked Rotor Amps @ 120V | 60 A |
| Sensor Type | Well |
| Includes | Remote Sensing Bulb |
| For Use With | Suitable for Temperature Control in Heating, Ventilating, Air Conditioning, Refrigeration Applications |
| Features | Non-Toxic, Environmentally Safe, Eco-Friendly Sensing Element Material |
| Pilot Duty Rating | 125 A @ 24/600V AC |
| Maximum Operating Temperature | 140 Degrees F |
| Temperature Sensitivity | +/- 5 Degrees F |
| Sensor Location | Remote |
| Contact Rating | 120V AC, 240V AC |
| Temperature Differential | 6 Degrees F |
| Electrical Connection Type | Screw Terminal |
| Full Load Amps @ 120V AC | 10 A |
| Differential Type | Manual Reset |
| Full Load Amps @ 240V AC | 6 A |
| Enclosure Color | Gray |
| Minimum Control Temperature | 100 Degrees F |
| Maximum Control Temperature | 240 Degrees F |
| Temperature Scale | Fahrenheit/Celsius |
| Number of Poles | 1 |
| Enclosure NEMA Rating | 1 |
| Programming Capability | Not Programmable |
| Housing Material | Steel |
Description

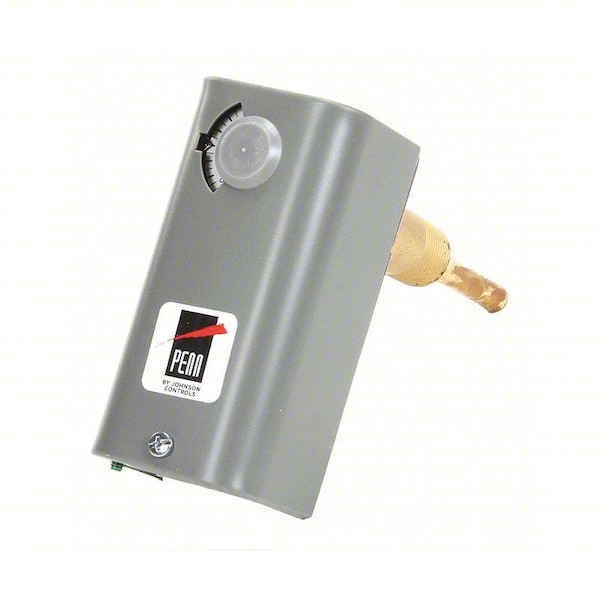

The Johnson Controls A19ADB-2C is a line voltage mechanical thermostat with a knob control. This type of thermostat directly controls heating or cooling equipment by making or breaking an electrical circuit based on temperature. It features a single-pole, single-throw (SPST) switch, operates at 24 to 600V AC, and has an inductive amp rating of 6 A at 240V. It is compatible with hot water heating controls for well immersion applications (LIT-125025) and has a temperature control range of 100 to 240 degrees Fahrenheit.
