- Temperature Control Range: 100 to 240 Degrees F
- Voltage: 24 to 277V AC
- Locked Rotor Amps @ 120V: 96 A
- Inductive Amps @ 120V: 16 A
- Resistive Amps @ 208VAC: 9.2 A
- Inductive Amps @ 208V: 9.2 A
Specifications
| Part Number | A19ADB-1C |
| Brand | Johnson Controls |
| Compatible System Type | Hot Water Heating Controls |
| Application | Heat Only |
| Switch Action | Open on Rise |
| Switch Type | SPST |
| Number of Cooling Stages | 1 |
| Sensing Bulb Dia. | 3/8 in |
| Capillary Length | 72 in |
| Overall Height | 4-3/8 in |
| Overall Width | 2-1/8 in |
| Bulb Length | 3 1/2 in |
| Overall Depth | 1-7/8 in |
| Number of Heating Stages | 1 |
| Temperature Control Range | 100 to 240 Degrees F |
| Control Type | Concealed Dial |
| Voltage | 24 to 277V AC |
| Mounting | Flat Surface |
| Item | Line Voltage Mechanical Thermostat |
| Locked Rotor Amps @ 120V | 96 A |
| Inductive Amps @ 120V | 16 A |
| Resistive Amps @ 208VAC | 9.2 A |
| Number of Switches | 1 |
| Contact Rating Resistive @ 240V | 8 A |
| Enclosure Type | Galvanized/Steel |
| Inductive Amps @ 208V | 9.2 A |
| Locked Rotor Amps @ 240V | 48 A |
| Sensor Type | Hydraulic Capillary Bulb (Copper) |
| Standards | CSA LR948/4813 02, UL E6688 |
| Contact Rating Resistive @ 277V | 6.9 A |
| Contact Rating Resistive @ 120V | 16 A |
| Includes | Remote Sensing Bulb |
| Inductive Amps @ 240V | 8 A |
| Number of Relay Inputs | 1 |
| Thermostat Type | Indoor Single-Stage Controls |
| For Use With | HVAC/R Applications |
| Number of Relay Outputs | 1 |
| Maximum Control Temperature | 240 Degrees F |
| Differential Type | Manual Reset |
| Temperature Scale | Fahrenheit/Celsius |
| Minimum Control Temperature | 100 Degrees F |
| Number of Poles | 1 |
| Temperature Differential | Manual Reset |
| Electrical Connection Type | Hardwired, Screw Terminal |
| Temperature Sensitivity | +/-4 Degrees F |
| Sensor Location | Remote |
| Full Load Amps @ 240V AC | 8 A |
| Enclosure NEMA Rating | 1 |
| Full Load Amps @ 120V AC | 16 A |
| Pilot Duty Rating | 125 VA @ 24 to 600V AC |
| Maximum Operating Temperature | 290 Degrees F |
| Contact Rating | 120V AC, 240V AC |
| Enclosure Color | Gray |
| Minimum Operating Temperature | -35 Degrees F |
| Housing Material | Steel |
| Programming Capability | Not Programmable |
Description

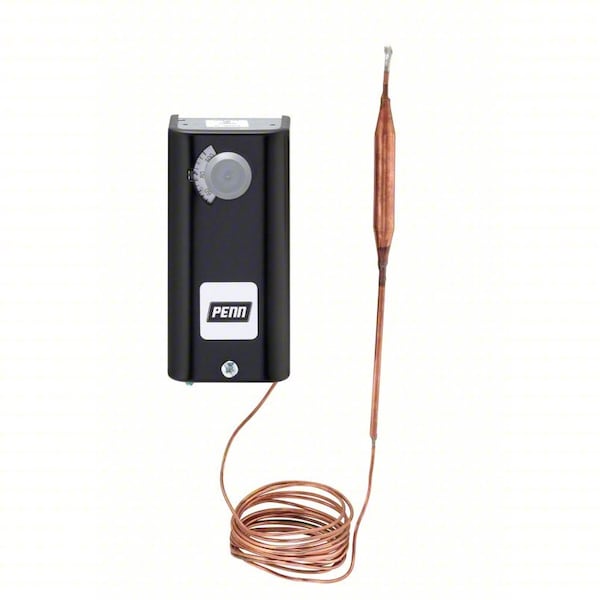

The Johnson Controls A19ADB-1C is a line voltage mechanical thermostat. This thermostat controls temperature by opening and closing an SPST switch in response to temperature changes sensed by its remote bulb. It is designed for heat-only applications in hot water heating controls, with a temperature control range of 100 to 240 degrees Fahrenheit and a voltage rating of 24 to 277V AC.
