- Voltage: 24V AC
- Digit Size: Easy Read
- Temporary Temperature Hold: Yes
- Temporary Program Override: Yes
- Frequency: 50 Hz, 60 Hz
- Temperature Differential: 2 Degrees F
Specifications
| Part Number | 24K41 |
| Brand | Lennox |
| Voltage | 24V AC |
| Dual Transformer Compatible | Yes |
| Standards | ASHRAE, FDD Compliant, IECC |
| Dehumidification Control | Yes |
| Key Pad Lockout | Yes |
| Screen Width | 4 3/8 in |
| Overall Width | 4 5/16 in |
| Digit Size | Easy Read |
| Overall Height | 3 5/16 in |
| Overall Depth | 7/8 in |
| Screen Height | 3 3/8 in |
| Item | Low Voltage Thermostat |
| Temporary Temperature Hold | Yes |
| Humidification Control | Yes |
| Occupancy Sensor | No |
| Temporary Program Override | Yes |
| Control Type | Touch Screen |
| Low Battery Indicator | No |
| Battery Backup | No |
| Includes | Mounting Hardware |
| Display Type | Digital |
| Stages | 4H/3C Conventional, 4H/3C Heat Pump |
| Terminal Designations | C, D, EC, F, G, O/B, R, TC, TI, TO, W1, W2, Y1, Y2 |
| Number of Cooling Stages - Conventional System | 3 |
| Frequency | 50 Hz, 60 Hz |
| Housing Color | White |
| Occupancy Sensor Compatibility | No |
| Compatible System Type | Heat Pump |
| Fan Settings | Auto-On-Circulate |
| System/Fan Settings | Auto-Cool-Heat-Off, Auto-On-Circulate |
| Temperature Differential | 2 Degrees F |
| Temperature Scale | Fahrenheit |
| Minimum Operating Humidity | 10 % |
| Differential Cool | 2 Degrees F |
| Differential Type | Adjustable |
| Backlit Type | Touch Activated |
| Minimum Operating Temperature | 45 Degrees F |
| Contact Rating | 18/30V AC |
| Number of Heating Stages - Heat Pump System | 4 |
| Sensor Location | Remote |
| Smart Connectivity | No Connectivity |
| Number of Cooling Stages - Heat Pump System | 3 |
| Temperature settings per day | 4 |
| Number of Heating Stages - Conventional System | 4 |
| Includes Positive Off | Yes |
| Backlit Screen | Yes |
| System Settings | Auto-Cool-Heat-Off |
| Number of Zones | 1 |
| Filter Change Reminder | Yes |
| Maximum Operating Temperature | 99 Degrees F |
| Mounting Direction/Shape | Horizontal |
| Temperature Readout | Yes |
| Backlit Screen Color | Black |
| Mounting Direction | Horizontal |
| Differential Heat | 2 Degrees F |
| Includes Batteries | No |
| Maximum Operating Humidity | 90 % |
| Electrical Connection Type | Screw Terminals |
| Shape | Rectangle |
| Millivolt Compatible | No |
| Requires C-Wire | Yes |
| Wireless | No |
| Programming Capability | 5-2 Day, 7-Day |
| Operating Temperature Range | 45 Degrees to 99 Degrees F |
| Operating Humidity Range | 10% to 90% RH |
| Application/Stages | Heat and Cool; 4H/3C Conventional, 4H/3C Heat Pump |
| Changeover Type | Automatic |
| Application | Heat and Cool |
| Thermostat Type | Low Voltage |
Description

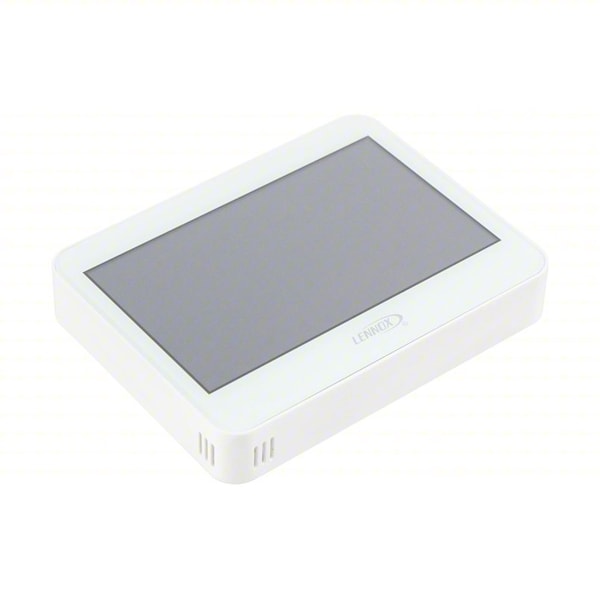

The Lennox 24K41 is a low voltage digital thermostat with a touch screen control, functioning as a CommProgStat for 4 heat and 3 cool stages. It operates on 24V AC, is dual transformer compatible, and supports temporary temperature hold and temporary program override. This thermostat is ASHRAE, FDD Compliant, and IECC compliant.
