- NEMA Rating: 1
- Conduit Size: 4 1/2 in, 4 3/4 in
- Float Diameter: 7 in
- Operating Temp. Range: -22 Degrees to 220 Degrees F
- Max. Voltage: 600
- HP @ 1 Phase - 240V: 3 hp
Specifications
| Part Number | 9038AG1S6 |
| Brand | Schneider Electric |
| Switch Function | Close On Rise |
| Mounting | Open Tank |
| Float Travel | 1 1/4 in |
| NEMA Rating | 1 |
| VA Rating | 460V AC |
| Overall Length | 10.32 in |
| Float Dia. | 7 in |
| Height | 4.5 in |
| Float Length | 7 in |
| Conduit Size | 4 1/2 in, 4 3/4 in |
| Width | 4.69 in |
| Overall Height | 4.5 in |
| Overall Width | 4.69 in |
| Manufacturer Warranty Length | 18 mo |
| Float Diameter | 7 in |
| Item | Alternator Open Liquid Level Switch |
| Operating Temp. Range | -22 Degrees to 220 Degrees F |
| Max. Voltage | 600 |
| Standards | CSA, UL Listed |
| Includes | Mechanical Alternator |
| Features | Nitrile (Buna-N) Seal Ring |
| HP @ 1 Phase - 240V | 3 hp |
| Electrical Connections | Screw Clamp |
| Float Material | Stainless Steel |
| Float Position | Below |
| Max. Current | 600 A |
| Amps | 10 A |
| Body Material | Steel |
| Contact Form | DPST |
| HP @ 1 Phase - 120V | 2 hp |
| HP @ 3 Phase - 240V | 5 hp |
| Material | stainless steel float/rod || nitrile (Buna-N) seal ring |
| Product Type | Alternator Open Liquid Level Switch |
| Operating Temperature - Maximum | 220 Degrees F |
| NEMA Enclosure Rating | 1 |
| Electrical Connection | Screw Clamp |
| Horsepower @ Single Phase - 240V AC | 3 hp |
| Mounting Style | Open Tank Side |
| Horsepower @ Single Phase - 120V AC | 2 hp |
| Operating Temperature - Minimum | -22 Degrees F |
| Current Rating | 600 A |
| Voltage Rating - Maximum | 575 V AC |
| Horsepower @ Three Phase - 240V AC | 5 hp |
| Mounting Support | flange |
| Permissible Voltage | 575 V AC |
| Number Of Poles | 2 |
| Switch Application | standard |
| Maximum Horse Power Rating | 3-3 hp 230 V AC, 1 phase || 5-5 hp 230 V AC, 3 phase || 1-1 hp 460/575 V AC, 3 phase || 3-3 hp 115 V AC, 1 phase || 2-2 hp 115 V AC, 3 phase |
| Nema Degree Of Protection | NEMA 1 |
| Product Specific Application | mechanically alternating the operation of two pumps or motors |
| Device Short Name | A |
| Enclosure Type | standard environment enclosure indoor |
Description

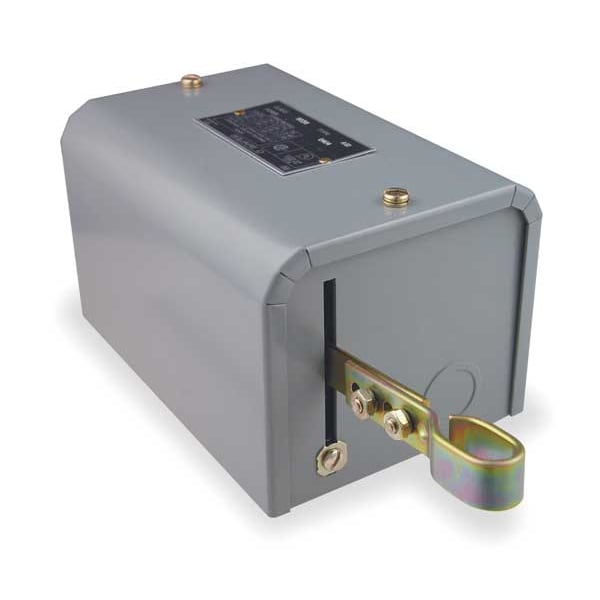

The Schneider Electric 9038AG1S6 is an alternator open liquid level switch. This type of switch controls liquid levels in a tank by opening or closing a circuit as the float moves. It is rated for 460V AC with a maximum voltage of 600V, includes a mechanical alternator and a nitrile (Buna-N) seal ring, and meets CSA and UL standards.
