- Sample Line Connection Size: 1/8 in
- Pressure Setting Range (In. WC): .03 to 1.4
- Operating Temp. Range (F): -40 to 167
- Pressure Type: Differential
- Minimum Operating Temperature: -40 Degrees F
- Maximum Pressure Setting: 1.4 in wc
Specifications
| Part Number | P32AF-13 |
| Brand | Johnson Controls |
| Switch Type | SPDT |
| Type | Differential |
| Agency Compliance | UL FILE/DATE MH10588/8-14-78 |
| Includes | Mounting Bracket |
| Application | Duct Heater Control, Humidity Detection and Control, Air Flow Control |
| Height | 5 31/50 in |
| Width | 3 1/4 in |
| Depth | 2 3/20 in |
| Overall Width | 3 1/4 in |
| Overall Depth | 2 1/8 in |
| Sample Line Connection Size | 1/8 in |
| Overall Height | 5 5/8 in |
| Item | Air Pressure Switch |
| Differential (In. WC) | 0.025 |
| Mounting Holes O.C. | 11/100 in |
| Mounting Location | Duct |
| Electrical Rating | 125 VA Pilot Duty @ 24V AC, 360 VA Pilot Duty @ 120 to 277V AC |
| Pressure Setting Range (In. WC) | .03 to 1.4 |
| Operating Temp. Range (F) | -40 to 167 |
| Sample Line Connector | 1/8"- 27 NPT |
| Sample Line Connector Type | NPT |
| Pressure Type | Differential |
| Number of Switches | 1 |
| Standards | UL Listed MH10588/8-14-78 |
| Minimum Operating Temperature | -40 Degrees F |
| Maximum Pressure Setting | 1.4 in wc |
| Contact Form | SPDT |
| Reset Type | Automatic Reset |
| Housing Type | Conduit Box |
| Maximum Pressure Rating | 1 psig |
| Mounting Orientation | Any Position |
| Product Type | Pressure Switch |
| Minimum Pressure Setting | 0.3 in wc |
| Maximum Differential Pressure Setting | 0.025 in wc |
| Maximum Operating Temperature | 167 Degrees F |
| Pressure Setpoint Type | Adjustable |
| Electrical Connection Type | Screw Terminals |
Description

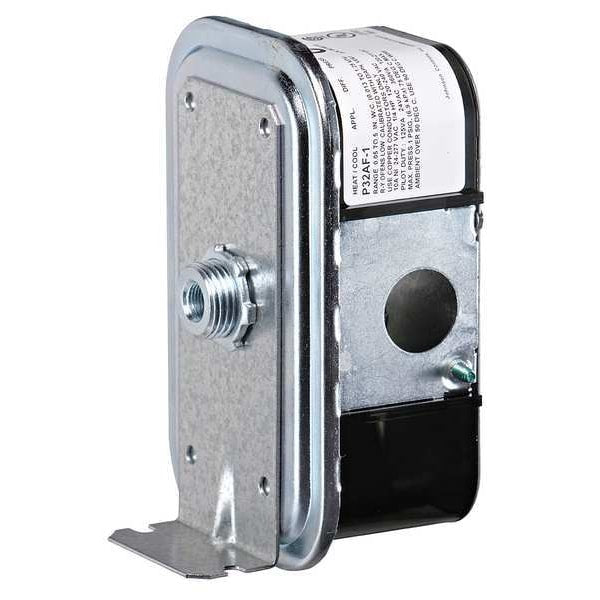

The Johnson Controls P32AF-13 is a differential air pressure switch with SPDT contacts. It is used for duct heater control, humidity detection and control, and air flow control, with a pressure setting range of 0.03 to 1.4 inches of water column. The switch has an electrical rating of 125 VA pilot duty at 24V AC and 360 VA pilot duty at 120 to 277V AC, and includes a mounting bracket.
