- Pressure Connection: 1/4 in Male SAE
- Mounting Hole Diameter: 1/4 in, 3/8 in
- Pressure Connection Size: 1/4 in
- Differential Pressure (PSI): 60
- Body Material: Steel
- Minimum Operating Temperature: 50 Degrees F
Specifications
| Part Number | P170DA-400 |
| Brand | Johnson Controls |
| Switch Type | SPST |
| Switch Action | Open on Rise |
| Pressure Connection | 1/4 in Male SAE |
| Type | High Pressure |
| Range (PSI) | 200 to 610 |
| Mounting Hole Diameter | 1/4 in, 3/8 in |
| Overall Height | 4 1/4 in |
| Pressure Connection Size | 1/4 in |
| Overall Width | 4 in |
| Overall Depth | 2 1/8 in |
| Item | Single Pressure Control |
| Reset | Manual |
| Application | High Limit |
| Differential Pressure (PSI) | 60 |
| Function | High Pressure Applications |
| Enclosure | NEMA 1 |
| Includes | Mounting Bracket |
| Open (PSI) | 400 psi |
| Electrical Connection Type | Hardwired |
| Body Material | Steel |
| Mounting Orientation | Flat, Horizontal, Vertical |
| Minimum Operating Temperature | 50 Degrees F |
| Product Type | Single Pressure Control |
| Rated Voltage | 120V AC, 208/240V AC |
| Input Sensor Type | Pressure Sensor |
| NEMA Rating | 1 |
| Element Type | Bellows |
| Reset Type | Manual Reset |
| Contact Form | SPST |
| Pressure Setting | High |
| Pressure Range Adjustability | Adjustable |
| Pressure Range - Minimum | 200 psi |
| Weight | 2.4 lb |
| Pressure Range - Maximum | 610 psi |
| Series | P170 |
| Pressure Connection Gender | Male |
| Standards | UL Listed |
| Pressure Type | Differential |
| Pressure Connection Type | Flare |
Description

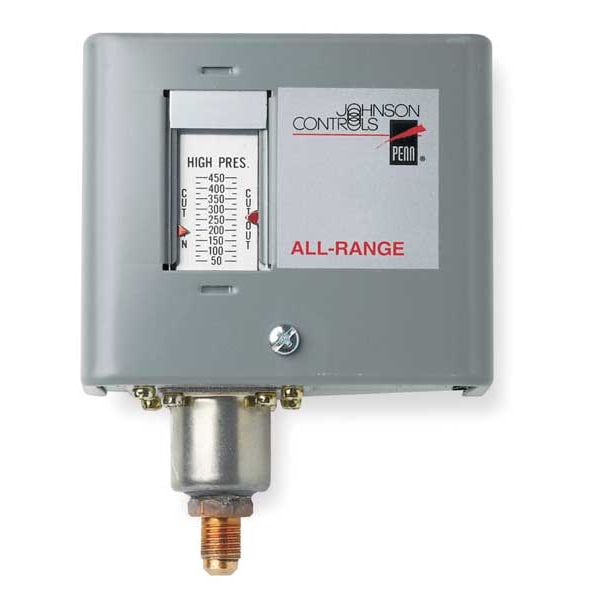

The Johnson Controls P170DA-400 is a single pressure control (SPST switch type) for high-pressure limit applications. It functions as a high-limit safety device, opening the circuit when system pressure exceeds the setpoint and closing after a 60 PSI differential drop. This unit features a 1/4 in male SAE pressure connection and a NEMA 1 enclosure.
