- Pressure Connection: 1/4 in Flare Nut
- Pressure Connection Size: 1/4 in
- Differential Pressure (PSI): 5 to 38
- Rated Voltage: 120V AC, 240V AC, 24V AC, 277-600V AC
- Pressure Differential - Minimum: 5 psi
- Pressure Type: Differential
Specifications
| Part Number | O16-624 |
| Brand | Ranco |
| Switch Type | SPST |
| Switch Action | Open on Fall |
| Pressure Connection | 1/4 in Flare Nut |
| Connection | Flare Nut |
| Type | Low Pressure |
| Capillary Length | 36 in |
| Pressure Connection Size | 1/4 in |
| Item | Single Pressure Control |
| Range (PSI) | (12 in) to 80 |
| Close (PSI) | User Settable |
| Application | Low Limit |
| Limited Knob Adjustment | Adjustment Screw |
| Differential Pressure (PSI) | 5 to 38 |
| Reset | Auto |
| Mounting | Bracket or Surface Mount |
| Open (PSI) | User Settable |
| Includes | Mounting Bracket, SUPER CAP Capillary |
| Function | Low Pressure Control |
| Enclosure | NEMA 1 |
| Rated Voltage | 120V AC, 240V AC, 24V AC, 277-600V AC |
| Product Type | Single Pressure Control |
| Pressure Differential - Minimum | 5 psi |
| Pressure Type | Differential |
| Pressure Connection Type | Flare |
| Pressure Differential Max. | 38 psi |
| Input Sensor Type | Pressure Sensor |
| Pressure Connection Gender | Female |
| Reset Type | Automatic Reset |
| Pressure Range - Minimum | 12 in Hg |
| NEMA Rating | 1 |
| Contact Form | SPST |
| Pressure Range - Maximum | 80 psi |
Description

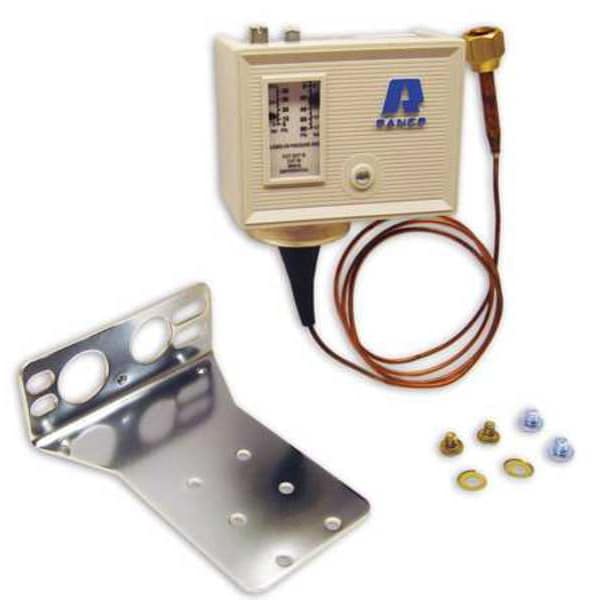

The Ranco O16-624 is a single pressure control, specifically a low-pressure switch with an SPST switch type. This device monitors and controls system pressure, opening or closing the electrical circuit based on the pressure setting, with an adjustable differential pressure range of 5 to 38 PSI. It is configured for low-limit application and features a 1/4-inch flare nut pressure connection.
