- Pressure Connection Size: 1/4 in
- NEMA Rating: IP44
- Pressure Type: Differential
- Rated Voltage: 120/240V AC
- Minimum Pressure Range - Low Side: 10 in Hg
- Maximum Pressure Range - High Side: 450 psi
Specifications
| Part Number | O12-4846 |
| Brand | Ranco |
| Application | Head Pressure Control |
| Pressure Connection Size | 1/4 in |
| Reset Type - Low Side | Automatic Reset |
| Contact Form | SPST |
| NEMA Rating | IP44 |
| Overall Height | 2 3/4 in |
| Overall Depth | 2 in |
| Overall Width | 5 3/8 in |
| Item | Dual Pressure Control |
| Pressure Type | Differential |
| Rated Voltage | 120/240V AC |
| Minimum Pressure Range - Low Side | 10 in Hg |
| Product Type | Dual Pressure Control |
| Maximum Pressure Range - High Side | 450 psi |
| Maximum Pressure Range - Low Side | 100 psi |
| Maximum Differential Pressure - Low Side | 40 psi |
| Minimum Differential Pressure - Low Side | 10 psi |
| Mounting Orientation | Horizontal |
| Pressure Connection Gender | Male |
| Series | O |
| Minimum Pressure Range - High Side | 150 psi |
| Maximum Differential Pressure - High Side | 70 psi |
| Compatible Refrigerant | R124, R134A, R401A, R401B, R402A, R402B, R403A, R403B, R404A, R507 |
| Housing Material | Thermoplastic |
| Pressure Connection Type | Flare |
| Bellows Material | Brass |
| Contact Rating (AC) | 24 A @ 120/240V AC |
| Reset Type - High Side | Convertible |
Description

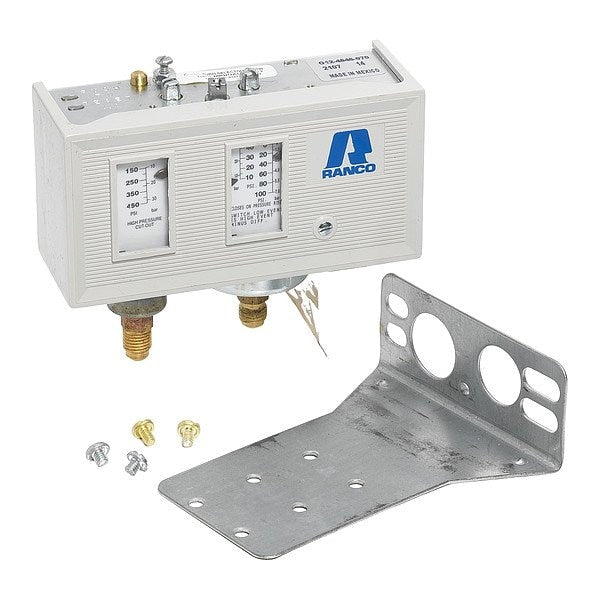

The Ranco O12-4846 is a dual pressure control for HVAC and appliance applications. This type of part monitors and switches based on two separate pressure setpoints to regulate system operation. It is used for head pressure control, features automatic reset on the low side, and is rated for 120/240V AC with an IP44 NEMA rating.
