- Low Pressure Range (PSIG): 10 to 100
- High Pressure Range (PSIG): 150 to 450
- High Pressure Differential (PSIG): 70 Fixed
- Low Pressure Differential (PSIG): 10 Fixed
- Pressure Connection Size: 1/4 in
- Voltage: 120/240
Specifications
| Part Number | O12-1594 |
| Brand | Ranco |
| Switch Type | SPST |
| Low Pressure Range (PSIG) | 10 to 100 |
| High Pressure Range (PSIG) | 150 to 450 |
| High Pressure Differential (PSIG) | 70 Fixed |
| Low Pressure Differential (PSIG) | 10 Fixed |
| Capillary Tube Length | 36 in |
| Pressure Connection Size | 1/4 in |
| Item | Dual Pressure Control |
| Mounting | Bracket or Flush-Mount Vertical or Horizontal |
| Voltage | 120/240 |
| Reset High | Manual |
| Includes | Color Coded Flare Nuts, Front Located Captive Cover Screws, Easy-To-Read Scales, Super Cap Capillary Protection System |
| For Use With | Commercial Refrigeration and Air Conditioning |
| Pressure Connection | Color Coded 1/4 inch Flare Nuts |
| Limited Knob Adjustment | Cut-out |
| Characteristics | Exclusive Convertible Reset for Manual or Automatic High Pressure Reset, Nema 1 Enclosure |
| Main Switch On Time (Sec.) | 1-110 |
| Reset Low | Manual |
| Main Switch Off Time (Sec.) | 1-110 |
| Product Type | Dual Pressure Control |
| Pressure Type | Differential |
| Maximum Differential Pressure - High Side | 70 psi |
| Maximum Pressure Range - Low Side | 100 psi |
| Pressure Connection Type | Flare |
| Contact Form | SPST |
| Maximum Differential Pressure - Low Side | 10 psi |
| Reset Type - Low Side | Manual Reset |
| Pressure Connection Gender | Female |
| Compatible Refrigerant | Commercial Refrigerants |
| NEMA Rating | 1 |
| Minimum Pressure Range - Low Side | 10 in Hg |
| Maximum Pressure Range - High Side | 450 psi |
| Contact Rating (AC) | 24 A @ 120/240V |
| Bellows Material | Copper |
| Series | O Series |
| Rated Voltage | 120V AC, 240V AC |
| Minimum Pressure Range - High Side | 150 psi |
| Mounting Orientation | Horizontal, Vertical |
| Reset Type - High Side | Manual Reset |
Description

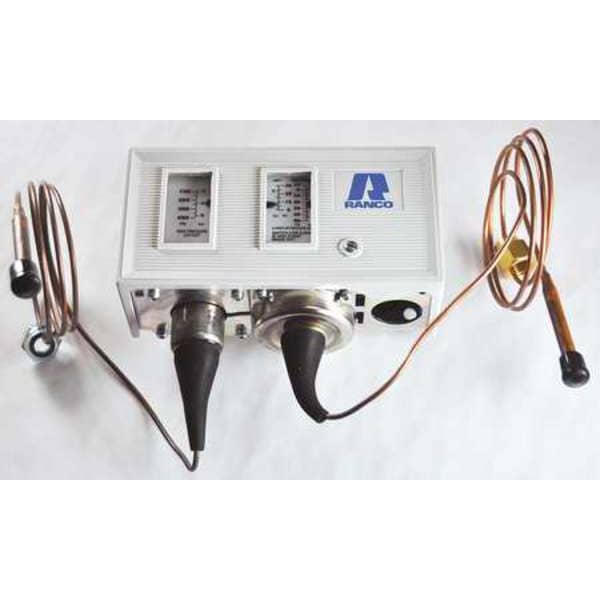

The Ranco O12-1594 is a dual pressure control, an SPST switch that monitors both low-side and high-side pressure in a refrigeration or HVAC system. It features a low-pressure range of 10 to 100 PSIG with a fixed 10 PSIG differential, and a high-pressure range of 150 to 450 PSIG with a fixed 70 PSIG differential, operating at 120/240 volts.
