- Low Pressure Range (PSIG): 12 to 50
- High Pressure Range (PSIG): 100 to 250
- High Pressure Differential (PSIG): 50 Fixed
- Low Pressure Differential (PSIG): 5 to 35
- Pressure Connection Size: 1/4 in
- Voltage: 24/240
Specifications
| Part Number | O12-1506 |
| Brand | Ranco |
| Switch Type | SPST |
| Low Pressure Range (PSIG) | 12 to 50 |
| High Pressure Range (PSIG) | 100 to 250 |
| High Pressure Differential (PSIG) | 50 Fixed |
| Low Pressure Differential (PSIG) | 5 to 35 |
| Capillary Tube Length | 36 in |
| Pressure Connection Size | 1/4 in |
| Item | Dual Pressure Control |
| Mounting | Any Position |
| Voltage | 24/240 |
| For Use With | R-12, R-22, R-134A and R-502, Commercial Refrigeration and Air Conditioning |
| Characteristics | High Pressure Compressor Protection with Low Pressure, Cycling or Safety Functions |
| Reset Low | Auto |
| Main Switch Off Time (Sec.) | 40-110 |
| Includes | Non-Conductive Cover |
| Reset High | Auto |
| Pressure Connection | 36 in Capillary |
| Main Switch On Time (Sec.) | 1-20 |
| Product Type | Dual Pressure Control |
| Rated Voltage | 24V AC, 240V AC |
| Maximum Differential Pressure - High Side | 50 psi |
| Minimum Pressure Range - Low Side | 12 in Hg |
| Reset Type - Low Side | Automatic Reset |
| Bellows Material | Copper |
| Contact Form | SPST |
| NEMA Rating | 1 |
| Pressure Connection Type | Flare |
| Mounting Orientation | Any Position |
| Pressure Connection Gender | Female |
| Maximum Pressure Range - High Side | 250 psi |
| Reset Type - High Side | Automatic Reset |
| Maximum Differential Pressure - Low Side | 35 psi |
| Contact Rating (AC) | 24 A @ 120/240V |
| Standards | CE Certified, cULus Listed, cURus Listed |
| Pressure Type | Differential |
| Minimum Pressure Range - High Side | 100 psi |
| Series | O Series |
| Compatible Refrigerant | R12, R134A, R22, R502 |
| Maximum Pressure Range - Low Side | 50 psi |
Description

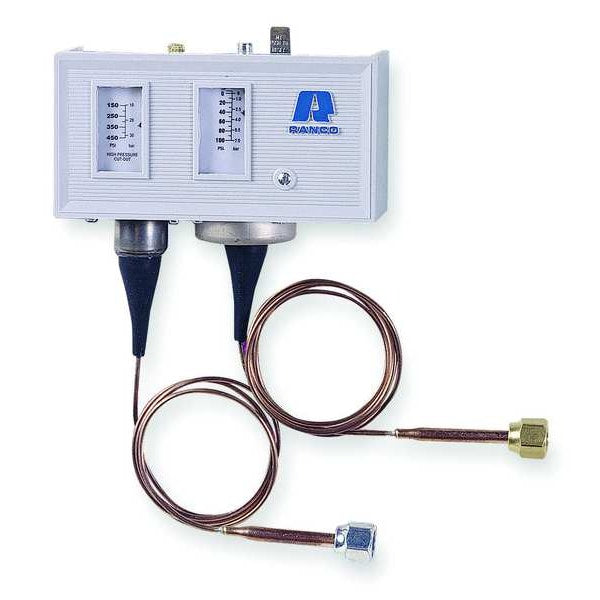

The Ranco O12-1506 is a dual pressure control with an SPST switch. It monitors both low-side and high-side pressure, opening or closing the switch at set points to protect the system. The low pressure range is 12 to 50 PSIG with a 5 to 35 PSIG differential, and the high pressure range is 100 to 250 PSIG with a 50 PSIG fixed differential, operating at 24/240 volts.
