- Maximum Pressure Rating: 25 psi
- Mounting Hole Diameter: 1/16 in
- Sample Line Connection Size: 1/8 in
- Minimum Differential Pressure Setting: 3 in wc
- Input Voltage: 120 to 480V AC
- Minimum Operating Temperature: -30 Degrees F
Specifications
| Part Number | 1823-20 |
| Brand | Dwyer Instruments |
| Range | 3 to 22 In H2O |
| Standards | CE, CSA, FM, RoHS, UL Listed |
| Product Type | Pressure Switch |
| Weight | 1.5 lb |
| Maximum Pressure Rating | 25 psi |
| Overall Width | 4 5/16 in |
| Mounting Hole Diameter | 1/16 in |
| Overall Height | 4 3/16 in |
| Sample Line Connection Size | 1/8 in |
| Overall Depth | 4 5/16 in |
| Item | Pressure Switch |
| Electrical Rating | 15 A @ 120 to 480V AC, 60 Hz. Resistive 1/8 HP @ 125V AC, 1/4 HP @ 250V AC, 60 Hz. De-Rate to 10 A |
| Sample Line Connector Type | NPT |
| Minimum Differential Pressure Setting | 3 in wc |
| Mounting Orientation | Vertical |
| Input Voltage | 120 to 480V AC |
| Minimum Operating Temperature | -30 Degrees F |
| Pressure Type | Differential |
| Maximum Differential Pressure Setting | 22 in wc |
| Number of Switches | 1 |
| Mounting Hole Center to Center Distance | 1 1/8 in |
| Contact Form | SPDT |
| Maximum Operating Temperature | 180 Degrees F |
| Electrical Connection Type | Screw Terminals |
| Housing Type | Conduit Box |
| Pressure Setpoint Type | Adjustable |
| Minimum Pressure Setting | 3 in wc |
| Maximum Pressure Setting | 22 in wc |
Description

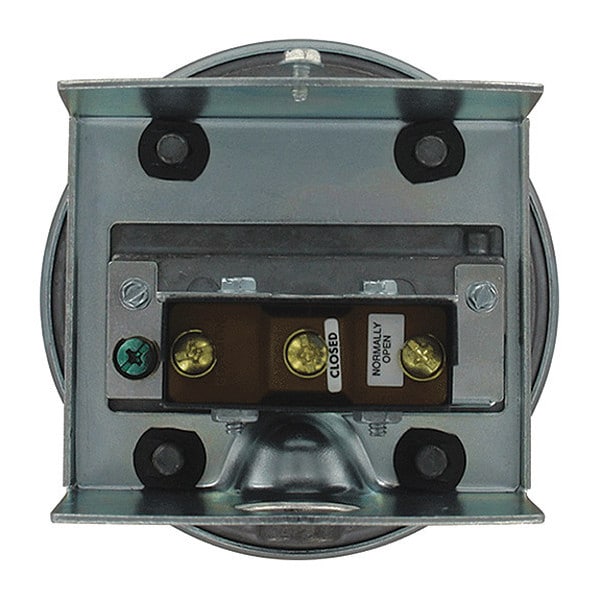

The Dwyer Instruments 1823-20 is a differential pressure switch with a minimum differential pressure setting of 3 in wc and a maximum pressure rating of 25 psi. This type of switch actuates an electrical contact based on the difference between two pressure inputs. It carries CE, CSA, FM, RoHS, and UL Listing certifications and is electrically rated at 15 A @ 120 to 480V AC, 60 Hz resistive, with de-rate to 10 A.
