- HP: 1/3
- Nameplate RPM: 1,100
- Voltage: 115V AC
- Stud Size: #8-32
- RPM Range: 1,001-1,100
- Phase: Single
Specifications
| Part Number | UH1036NB |
| Brand | Century |
| Motor Design | Permanent Split Capacitor |
| HP | 1/3 |
| Nameplate RPM | 1,100 |
| Voltage | 115V AC |
| Frame | 48Y |
| Ring Dia. | 2 1/4 in |
| Shaft Dia. | 1/2 in |
| Body Dia. | 5 5/8 in |
| Shaft Length | 5 in |
| Overall Length | 11 1/8 in |
| Length Less Shaft | 6 1/8 in |
| Bolt Circle Dia. | 5 1/8 in |
| Lead Length | 58 in |
| Stud Size | #8-32 |
| Resilient Ring Dia. | 2 1/4 in |
| Item | Unit Heater Motor |
| Motor Enclosure Design | Totally Enclosed |
| Motor Mounting Type | Ring/Stud |
| RPM Range | 1,001-1,100 |
| Motor Application | HVAC/R |
| Motor Shaft Rotation | CW/CCW |
| Duty | Continuous |
| Motor Bearings | Ball |
| Motor Service Factor | 1 |
| Phase | Single |
| Full Load Amps | 4.3-1.8 A |
| Ins. Class | B |
| Includes | Extended Studs, Permanent Split Capacitor, Resilient Rings |
| Mounting Stud Pattern | 3-5/8 in x 3-5/8 in |
| Hz | 60 Hz |
| Motor Sub Application | Unit Heater |
| Standards | CSA Certified, UL Recognized |
| Motor Efficiency Group | Energy Efficient |
| Max. Ambient Temp. | 40 Degrees C |
| Application | Unit Heaters and Other Shaft-mounted Fan and Blower Equipment in Dusty, Dirty, Noncombustible Environments |
| Voltage Compatibility | 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC |
| No. of Speeds | 2 |
| Ring to Ring Center | 5 11/16 in |
| Motor Thermal Protection | Auto |
| Conduit Box Location | Exterior |
| Stud Quantity | 4 |
| Motor Mounting Position | All Angle |
| Usable @ 200V | No |
| Duty Cycle | Continuous |
| Motor Shaft Design | Flat |
| Mounting Holes | (4) #8-32 |
| Capacitor Required | Included |
| Usable @ 208V | No |
| Number of Shafts | 1 |
| Motor Frame Material | Steel |
| Weight | 16 lb |
| Conduit Box Position | F3 |
| Number of Speeds | 2 |
| Mounting | Ring/Stud |
| Ambient Temperature | 40 Degrees C |
| Output Watts | 250 W |
Description

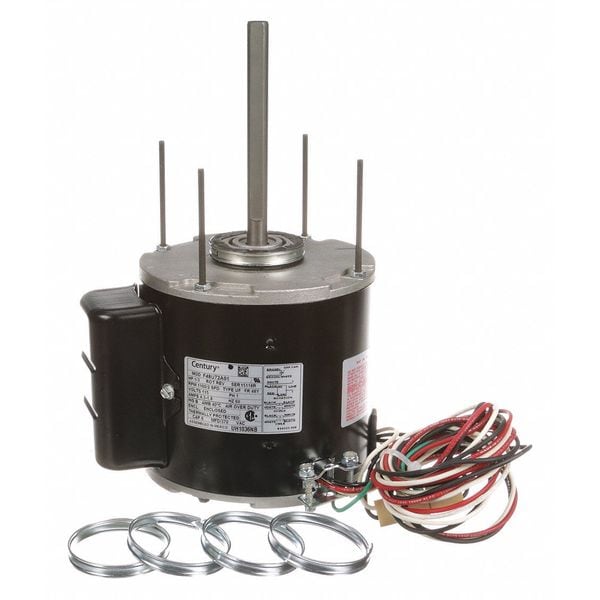

The Century UH1036NB is a unit heater motor, a type of motor that drives the fan in a unit heater to circulate air. This 1/3 hp, 115V AC motor operates at 1,100 RPM and features a totally enclosed enclosure with a ring/stud mounting type.
