- Full Load Amps: 13.2/6.8-6.6
- Phase: Single
- Hz: 60/50
- Max. Ambient Temp.: 40 Degrees C
- Voltage: 575V AC
- Nameplate RPM: 3,525
Specifications
| Part Number | EU1002B |
| Brand | U.S. Motors |
| Motor Shaft Rotation | CW |
| Motor Design | Capacitor-Start |
| Length Less Shaft | 698 1/2 in |
| Motor Bearings | Ball |
| Full Load Amps | 13.2/6.8-6.6 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 1/2 in |
| Overall Length | 12 3/8 in |
| Body Dia. | 6.5 in |
| Bolt Circle Dia. | 5 7/8 in |
| Height | 8 5/8 in |
| Item | Pool Pump Motor |
| Motor Mounting Type | Rigid Base |
| Motor Application | Pump |
| Standards | CE, CSA Certified, ISO9001:2015 Certified, UL Listed |
| Phase | Single |
| Hz | 60/50 |
| Motor Thermal Protection | None |
| Ins. Class | B |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Design | Threaded |
| Voltage | 575V AC |
| Motor Service Factor | 1.4 |
| Frame | 56J |
| Nameplate RPM | 3,525 |
| HP | 1 |
| Motor Enclosure Design | Open Dripproof |
| Motor Sub Application | Pump |
| Duty Cycle | Continuous |
| Weight | 30 lb |
| Usable @ 208V | Yes |
| Full Load Amps @ 50Hz | 13.2/6.8-6.6 |
| Voltage @ 50Hz | 110/220V, 115/208-230V |
| HP @ 50Hz | 1 |
| No. of Speeds | 1 |
| RPM @ 50Hz | 2,850/3,450 |
| Max. SF Amps | 16.2/8.6-8.1 |
| RPM Range | 3,001-3,600 |
Description

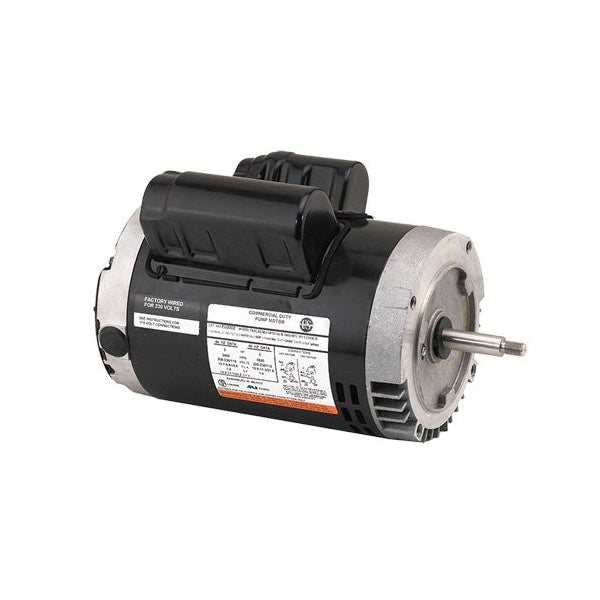

The U.S. Motors EU1002B is a 1HP pool pump motor with a rigid base mounting. This single-phase motor operates at 3450/2850 RPM (60/50 Hz) and draws 13.2/6.8-6.6 full load amps at 115/208-230 volts. It is UL Listed, CSA Certified, CE marked, and ISO9001:2015 Certified, with a maximum ambient temperature rating of 40 degrees C.
