- Voltage: 120v
- Max. Inlet Temp.: 150 Degrees F
- Duct Diameter: 6 in
- Overall Diameter: 6 in
- Motor RPM: 3000
- Max. Wattage: 30
Specifications
| Part Number | EF-6 |
| Brand | Tjernlund Products |
| Length | 6 1/2 in |
| Voltage | 120v |
| Housing Dia. | 6 in |
| Max. Inlet Temp. | 150 Degrees F |
| Motor Enclosure | Open Air Over |
| Fits Duct Dia. | 6 in |
| Std. Lengths | 25/50/75 ft. |
| Inlet and Outlet Dia. | 6 in |
| Overall Height | 6 1/2 in |
| Overall Width | 6 in |
| Duct Diameter | 6 in |
| Overall Diameter | 6 in |
| CFM @ 0.000-In. SP | 180 |
| Motor RPM | 3000 |
| Max. Wattage | 30 |
| Item | In-Line Duct Fan |
| CFM @ Duct | 150/100/90 cfm |
| Max. Amps | 0.4 A |
| Phase | 1 |
| Bearing Type | Sleeve |
| Number of Speeds | 1 |
| Includes | External Junction Box for Easy Wiring |
| Housing Material | Galvanized Steel |
| Mounting Position | Horizontal or Vertical |
| Speed Control | Mfr. No. 48C172 |
| Hz | 60 |
| Application | General Purpose |
| Airflow @ 0.000 in SP | 180 cfm |
| Speed Control Included | No |
| Maximum Inlet Air Temperature | 150 Degrees F |
| Speed Controllable | Yes |
| For Fan Type | Tubeaxial |
| Motor Output Power | 7.5 W |
| Nameplate Voltage | 120V AC |
| High-Efficiency Motor | No |
| Motor Speed | 3,000 RPM |
| Mounting Orientation | Horizontal or Vertical |
Description

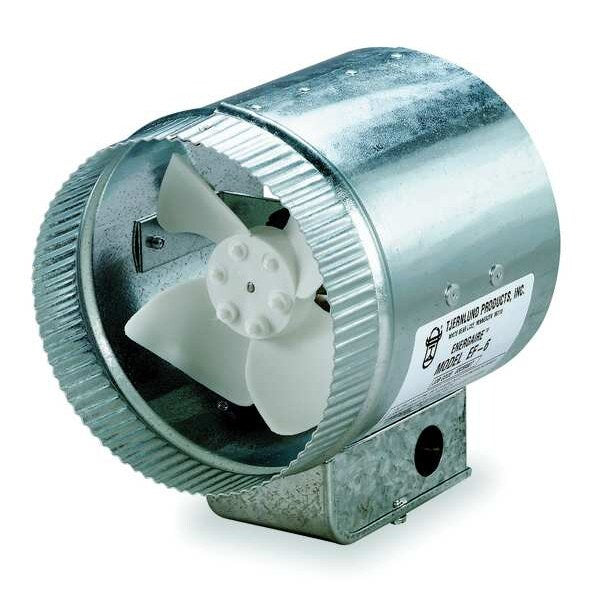

The Tjernlund Products EF-6 is an axial in-line duct fan for 6-inch ducts. It has a galvanized steel housing, a 120V AC single-phase motor running at 3,000 RPM, and a maximum inlet air temperature of 150 degrees F. Airflow is 180 cfm at 0.000-inch static pressure, with a maximum wattage of 30 and 0.4 maximum amps. It includes an external junction box for wiring and can be mounted horizontally or vertically.
