- HP: 1/10, 1/15, 1/20
- RPM Range: 1,501-1,600
- Voltage: 115V AC
- Nameplate RPM: 1,550 RPM
- Voltage Compatibility: 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
- Full Load Amps: 3.5,1.7,1.4 A
Specifications
| Part Number | DBL4404 |
| Brand | Century |
| Motor Design | Shaded Pole |
| HP | 1/10, 1/15, 1/20 |
| RPM Range | 1,501-1,600 |
| No. of Speeds | 3 |
| Voltage | 115V AC |
| Shaft Dia. | 1/2 in |
| Length Less Shaft | 4 1/16 in |
| Body Dia. | 5 in |
| Shaft Length | 9 5/16 in |
| Lead Length | 38 1/2 in |
| Overall Length | 22 in |
| Motor Shaft Rotation | CCWLE |
| Frame | 42Y |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Resilient Base |
| Nameplate RPM | 1,550 RPM |
| Ins. Class | A |
| Motor Sub Application | Fan Coil, Room Air Conditioner Motor |
| Capacitor Required | No |
| Motor Bearings | Sleeve |
| Motor Thermal Protection | Auto |
| Voltage Compatibility | 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC |
| Full Load Amps | 3.5,1.7,1.4 A |
| Duty | Continuous |
| Motor Shaft Design | Flat |
| Max. Ambient Temp. | 40 Degrees C |
| Item | Room Air Conditioner Motor |
| Ring to Ring Center | 4 1/16 in |
| Standards | CSA Certified, UL Recognized |
| Hz | 60 Hz |
| Motor Application | HVAC/R |
| Motor Service Factor | 1 |
| Phase | 1 |
| Motor Mounting Position | Horizontal |
| Usable @ 208V | No |
| Usable @ 200V | No |
| Weight | 12 lb |
| Number of Shafts | 2 |
| Motor Frame Material | Steel |
| Number of Speeds | 3 |
| Mounting | Cradle Base |
Description

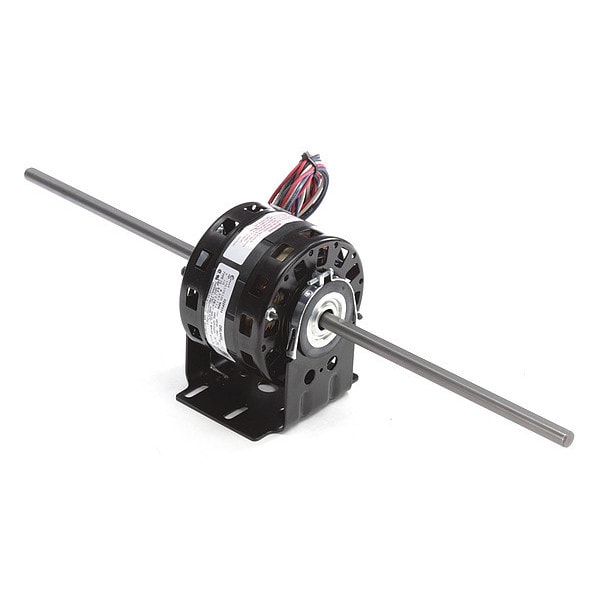

The Century DBL4404 is a shaded pole, open air-over room air conditioner motor. It operates at 115V AC with a nameplate speed of 1,550 RPM and a horsepower range of 1/10, 1/15, and 1/20. This motor is designed for fan coil and room air conditioner applications and features a resilient base mount with no capacitor required.
