- HP: 1 hp
- RPM Range: 1,701-1,800
- Voltage: 115/230V AC
- Voltage Compatibility: 115V AC, 230V AC
- Nameplate RPM: 1,725 RPM
- Phase: Single
Specifications
| Part Number | D1CPA2PH9 |
| Brand | U.S. Motors |
| Motor Enclosure Design | Open Drip Proof |
| Motor Mounting Type | Cradle Base |
| HP | 1 hp |
| RPM Range | 1,701-1,800 |
| Voltage | 115/230V AC |
| Overall Length | 12 5/16 in |
| Length Less Shaft | 10 3/8 in |
| Shaft Length | 1 15/16 in |
| Shaft Dia. | 5/8 in |
| Item | General Purpose Motor |
| Frame | 56H |
| Motor Thermal Protection | Auto |
| Motor Service Factor | 1.15 |
| No. of Speeds | 1 |
| Voltage Compatibility | 115V AC, 230V AC |
| Motor Application | General Purpose |
| Motor Sub Application | Air Compressors, Blowers, Conveyors, Pumps |
| Nameplate RPM | 1,725 RPM |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Design | Capacitor-Start/Run |
| Standards | CSA Certified, UL Recognized |
| Phase | Single |
| Max. Ambient Temp. | 40 Degrees C |
| Nominal Efficiency | 83 % |
| Full Load Amps | 8.8/4.4 A |
| Ins. Class | B |
| Hz | 60 Hz |
| Weight | 31.43 lb |
| Duty Cycle | Continuous |
| Usable @ 208V | Not Usable at 208V |
| Usable @ 200V | Not Usable at 200V |
Description

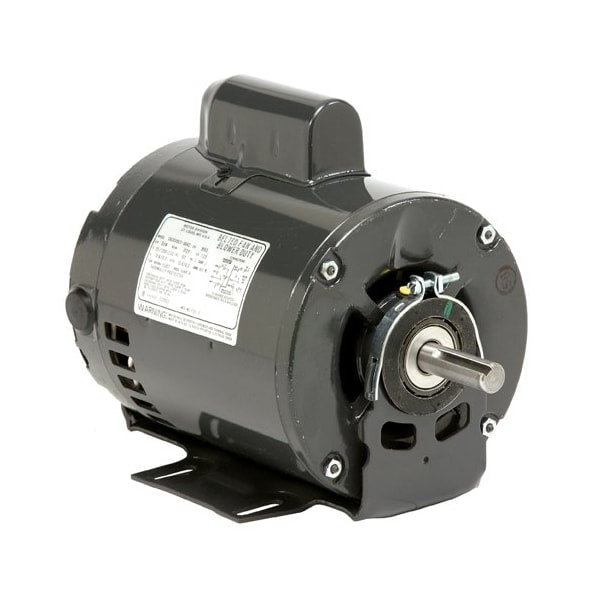

The U.S. Motors D1CPA2PH9 is a 1 hp, 115/230V AC general purpose motor with an open drip proof enclosure and cradle base mounting. As a capacitor-start motor, it provides the high starting torque required to drive fans, blowers, pumps, and other equipment.
