- HP: 1/10, 1/15, 1/20, 1/25
- RPM Range: 1,001-1,100
- Voltage: 277V AC
- Max. Ambient Temp.: 40 Degrees C
- Full Load Amps: 1.3, 0.8, 0.7, 0.6 A
- Voltage Compatibility: 208-230/277V AC, 230/277V AC, 265V AC, 277/230V AC, 277V AC
Specifications
| Part Number | 7DB6408 |
| Brand | Century |
| Motor Design | Shaded Pole |
| HP | 1/10, 1/15, 1/20, 1/25 |
| RPM Range | 1,001-1,100 |
| No. of Speeds | 4 |
| Voltage | 277V AC |
| Shaft Dia. | 1/2 in |
| Length Less Shaft | 4 7/16 in |
| Shaft Length | 9 5/16 in |
| Body Dia. | 5 in |
| Resilient Ring Dia. | 2 1/2 in |
| Lead Length | 40 in |
| Overall Length | 22 in |
| Motor Shaft Rotation | CCWLE |
| Frame | 42Y |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Resilient Base |
| Max. Ambient Temp. | 40 Degrees C |
| Full Load Amps | 1.3, 0.8, 0.7, 0.6 A |
| Voltage Compatibility | 208-230/277V AC, 230/277V AC, 265V AC, 277/230V AC, 277V AC |
| Phase | 1 |
| Motor Bearings | Sleeve |
| Duty | Continuous |
| Motor Sub Application | Room Air Conditioner |
| Standards | CSA Certified, UL Recognized |
| Item | Room Air Conditioner Motor |
| Motor Thermal Protection | Auto |
| Motor Shaft Design | Flat |
| Motor Service Factor | 1 |
| Motor Application | HVAC/R |
| Ins. Class | A |
| Ring to Ring Center | 4 1/16 in |
| Hz | 60 Hz |
| Capacitor Required | No |
| Nameplate RPM | 1,050 RPM |
| Usable @ 208V | No |
| Number of Shafts | 2 |
| Mounting Holes | 4 |
| Usable @ 200V | No |
| Motor Mounting Position | Horizontal |
| Stud Quantity | 4 |
| Motor Frame Material | Steel |
| Includes | Resilient Base |
| Weight | 11 lb |
| Number of Speeds | 4 |
| Mounting | Cradle Base |
Description

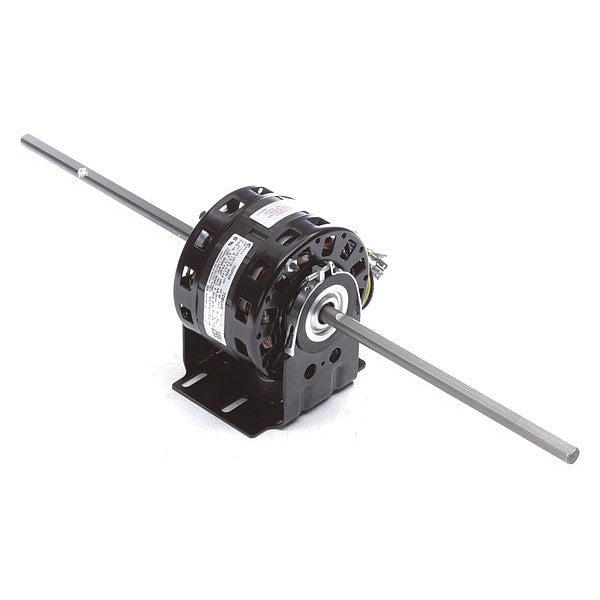

The Century 7DB6408 is a room air conditioner motor, a PSC (permanent split capacitor) type with an open air-over enclosure. It operates at 277V AC and 1,050 RPM, available in 1/10, 1/15, 1/20, and 1/25 HP with corresponding full load amps of 1.3, 0.8, 0.7, and 0.6 A. This motor features a resilient base mounting and is rated for a maximum ambient temperature of 40 degrees C.
