- Nameplate RPM: 1,725
- Voltage: 208-230/460V
- Full Load Amps: 2.3-2.4/1.2 A
- HP: 1/2
- RPM Range: 0-1,725
- Phase: Three
Specifications
| Part Number | 056T17F15948 |
| Brand | Leeson |
| Nameplate RPM | 1,725 |
| Voltage | 208-230/460V |
| Motor Mounting Type | Universal |
| Full Load Amps | 2.3-2.4/1.2 A |
| Frame | 56C |
| Overall Length | 11 1/16 in |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Item | General Purpose Motor |
| HP | 1/2 |
| Motor Bearings | Ball |
| Motor Service Factor | 1.15 |
| Motor Design | Three-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| RPM Range | 0-1,725 |
| Phase | Three |
| No. of Speeds | 1 |
| Motor Shaft Rotation | CCW |
| Hz | 60 Hz |
| Ins. Class | F |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Nominal Efficiency | 72.1 % |
| Standards | CE, CSA, UL |
| Motor Thermal Protection | None |
| Weight | 24 lb |
| Duty Cycle | Continuous |
| Usable @ 208V | Yes |
| NEMA Design | B |
| Inverter Rated | Yes |
| Inverter Rating | 10:1 |
Description

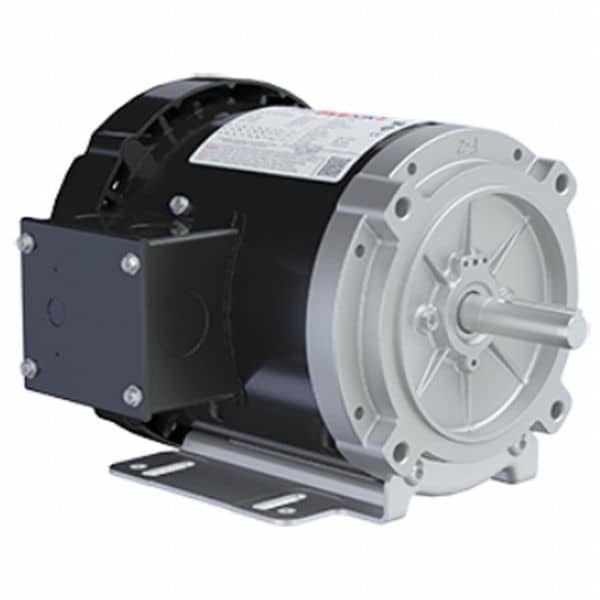

The Leeson 056T17F15948 is a 1/2 HP three-phase general purpose motor with a 56C frame and a nameplate speed of 1,725 RPM. It operates on 208-230/460V at 60 Hz and features a totally enclosed fan cooled steel enclosure with ball bearings. This continuous-duty motor has a keyed shaft, a 1.15 service factor, and a nominal efficiency of 72.1%.
