- Nameplate RPM: 1800
- Voltage: 230/460V AC
- Full Load Amps: 12.4
- HP: 10
- RPM Range: 1701-1800
- Phase: Three
Specifications
| Part Number | 01018OT3E215T-S |
| Brand | Weg |
| Nameplate RPM | 1800 |
| Voltage | 230/460V AC |
| Motor Mounting Type | FOOT |
| Full Load Amps | 12.4 |
| Frame | 213/5T |
| Length Less Shaft | 13 3/16 in |
| Overall Length | 16.575 |
| Shaft Dia. | 1 3/8 in |
| Shaft Length | 3 3/8 in |
| Manufacturers Warranty Length | 3 yr |
| Item | General Purpose Motor |
| HP | 10 |
| Motor Bearings | Ball |
| Motor Service Factor | 1.15 |
| Motor Design | Three-Phase |
| Motor Enclosure Design | ODP |
| RPM Range | 1701-1800 |
| Phase | Three |
| No. of Speeds | 1 |
| Motor Application | General Purpose |
| Motor Shaft Rotation | CW/CCW |
| Voltage Compatibility | 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC |
| Hz | 60 Hz |
| Ins. Class | F |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Nominal Efficiency | 91.7 |
| Standards | CSA (70014057), UL (E104590 |
| CC Number | CC029A |
| Green Environmental Attribute | Does not Contain Formaldehyde |
| Motor Thermal Protection | None |
| Inverter Rated | Yes |
| Green Certification or Other Recognition | NEMA Premium Rated |
| Capacitor Required | No |
| HP @ 50Hz | 10 hp |
| Weight | 121 lb |
| Service Factor @ 50Hz | 1.15 |
| Voltage @ 50Hz | 220/380, 240/415, 400 |
| Usable @ 208V | Yes |
| Usable @ 200V | No |
| Full Load Amps @ 50Hz | 27.2/14.4, 29.8/14.9 A |
| NEMA Design | None |
| Duty Cycle | Continuous |
| RPM @ 50Hz | 1460/1465 rpm |
| Kw | 7.5 |
Description

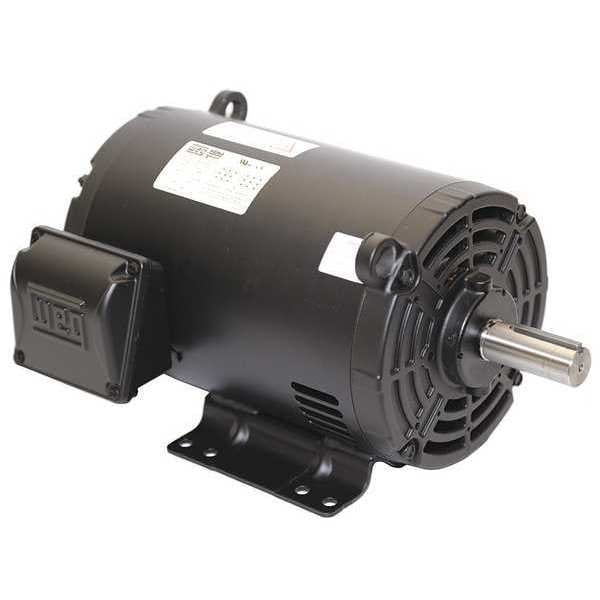

The Weg 01018OT3E215T-S is a 10 HP general purpose three-phase motor. This motor converts electrical energy into mechanical power to drive equipment, operating at 1800 RPM with a 230/460V AC voltage rating and 12.4 full load amps. It features a foot-mounted ODP (Open Drip-Proof) enclosure.
