- Roller Diameter: 0.5 in
- Mounting Hole Diameter: 0.98 in
- Amps: 15 Ind./2 Ind./0.5 Res./0.25 Res
- Voltage Rating: 600VAC/250VDC
- NEMA Rating: 1
- Roller Material: Steel
Specifications
| Part Number | BZE6-2RQ8 |
| Brand | Honeywell |
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger, Roller |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 15A at 600V |
| Height | 2.50" |
| Actuator Length | 1.2 in |
| Depth | 3.04" |
| Roller Dia. | 0.5 in |
| Width | 1.00" |
| Roller Width | 0.18 in |
| Body Height - Limit Switch | 1.75 in |
| Body Width - Limit Switch | 3.04 in |
| Actuator Length - Limit Switch | 1.2 in |
| Body Depth - Limit Switch | 1.0 in |
| Roller Diameter | 0.5 in |
| Body Depth | 1 in |
| Overall Width | 3.04 in |
| Body Width | 3.04 in |
| Body Height | 1.75 in |
| Overall Depth | 1 in |
| Mounting Hole Diameter | 0.98 in |
| Item | Limit Switch |
| DC Contact Rating - Limit Switch | 2A at 250V |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| Basic Actuator Style (Limit Switch) | Plunger |
| Operating Force | 9 oz to 13 oz |
| Amps | 15 Ind./2 Ind./0.5 Res./0.25 Res |
| Voltage Rating | 600VAC/250VDC |
| NEMA Rating | 1 |
| Electrical Connection | Screw Terminals |
| Body Style (Limit Switch) | Miniature |
| Roller Material | Steel |
| Actuator Style | Roller Plunger |
| Actuator Location (Limit Switch) | Top |
| Boot Sealed Actuator (Limit Switch) | No |
| Mounting Hole Spacing - Limit Switch | 1.00 in |
| Series | BZE6 |
| Limit Switch Style | General Purpose Limit Switch |
| Wiring Entry | 1/2 in NPT |
| Stem Thread - Limit Switch | No Stem |
| Movement | Release Force 0.25 lb min |
| Contact Form | 1NO/1NC |
| Boot Sealed Actuator - Limit Switch | No |
| AC Contact Rating | 15 A @ 600 V |
| IP Rating | IP66 |
| DC Contact Rating | 2 A @ 250 V |
| Body Material | Metal |
| Mounting Hole - Limit Switch | (2) 0.22 in dia |
| Contact Form - Limit Switch | 1NC/1NO |
| Mounting Hole Pattern - Limit Switch | 2 Hole Horizontal |
| Travel | Differential Travel 0.002 in, Maximum Pretravel 0.015 in, Minimum Over Travel 0.140 in |
| Actuator Location | Top |
| Actuator Style (Limit Switch) | Plunger, Roller |
| Standards | CE, CSA, UL Listed |
| Number of Poles | 1 |
| Operating Temp. Range | -25 Degrees to 160 Degrees F |
| Differential Travel | 0.002 in |
| Pretravel | 0.02 in |
| Boot Sealed Actuator | No Boot Included |
| Overtravel | 0.14 in |
| NEMA Enclosure Rating | 1 |
| Operating Temperature - Minimum | -25 Degrees F |
| Operating Force - Minimum | 9 ozf |
| Operating Temperature - Maximum | 160 Degrees F |
| Body Configuration | Non Plug-In |
| Operating Force - Maximum | 13 ozf |
| Mounting Style | Surface |
| Number of Mounting Holes | 2 |
| Mounting Hole Horizontal Center to Center Distance | 25 mm |
Description

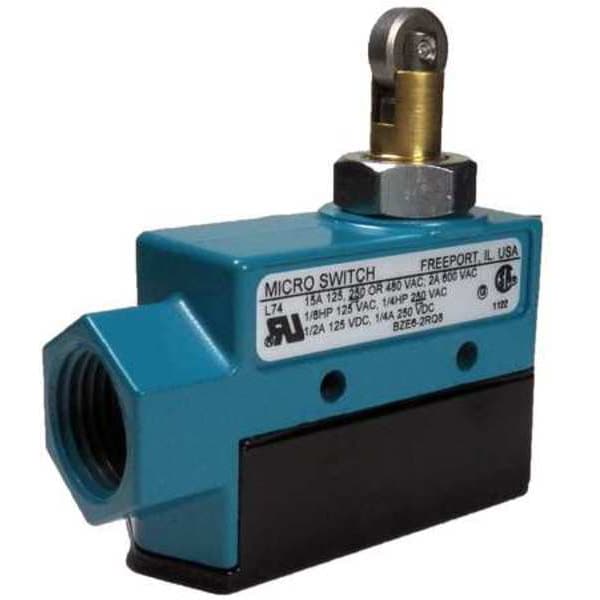

The Honeywell BZE6-2RQ8 is a limit switch with a roller plunger actuator located on the top. As a limit switch, it detects the presence or position of an object by making or breaking an electrical connection when the plunger is actuated. It carries an AC contact rating of 15A at 600V and a DC contact rating of 2A at 250V, with an operating force between 9 oz and 13 oz.
