- BtuH Capacity: 140,000 BtuH
- Inlet Size: 1/2 in
- Outlet Size: 1/2 in
- Port Connection Size: 1/2 in
- Ambient Temp. Range: -40 Degrees to 175 Degrees F
- Inlet Pressure Tap: Yes
Specifications
| Part Number | 36G22-254 |
| Brand | White-Rodgers |
| BtuH Capacity | 140,000 BtuH |
| Coil Volts | 24 V |
| Gas Type | NG/LP |
| Ignition Type | Hot Surface |
| Inlet Size | 1/2 in |
| Outlet Size | 1/2 in |
| Overall Length | 3 15/16 in |
| Overall Height | 4 1/4 in |
| Port Connection Size | 1/2 in |
| Valve Type | Fast Opening |
| Ambient Temp. Range | -40 Degrees to 175 Degrees F |
| Item | Gas Valve |
| LP Conversion Kit | No |
| Flow Direction | Straight-Thru |
| Side Taps | No |
| Inlet Pressure Tap | Yes |
| Port Connection Type | NPT |
| Heating Capacity - Maximum | 140,000 BtuH |
| Operating Temperature - Minimum | -40 Degrees F |
| Includes Pilot Generator Kit | Pilot Generator Kit Not Included |
| Includes Conversion Kit | Conversion Kit Not Included |
| Installation Orientation | Versatile |
| Sensing Type | Flame Sensor |
| Pilot Type | Direct Spark Ignition, Hot Surface Ignition, Intermittent Pilot |
| Manufacturer Series | 36G |
| Reducer Bushings Included | None |
| Electrical Connections | Quick Connect Terminal |
| Operating Temperature - Maximum | 175 Degrees F |
| Includes Pressure Tap | Pressure Tap Inlet Included, Pressure Tap Outlet Included |
| For Media | Liquid Propane, Natural Gas |
| Voltage | 24V AC |
| Includes Thermostat | Mechanical Thermostat Not Included |
| Includes Pressure Regulator | Pressure Regulator Included |
| Current | 0.3 A |
| Opening Characteristic | Fast Opening |
| Includes Side Taps | Side Taps Not Included |
| Valve Design | Single |
| Includes On/Off Switch | On/Off Switch Included |
| Port Connection Gender | Female |
Description

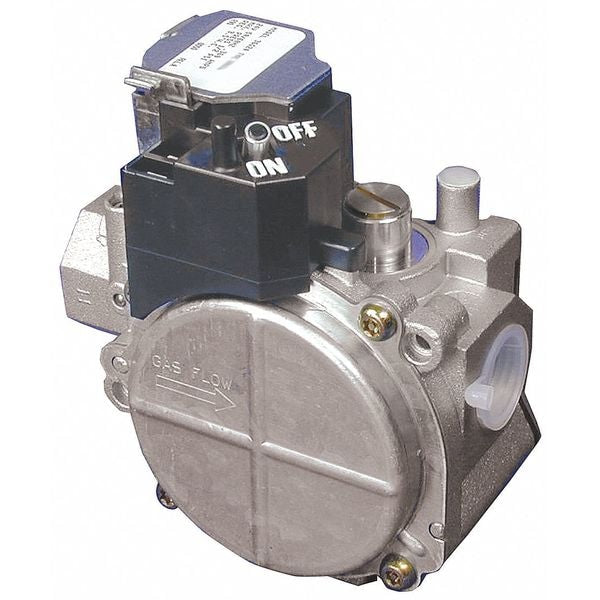

The White-Rodgers 36G22-254 is a 24-volt hot surface ignition gas valve for natural gas or LP. It is a fast-opening, straight-thru flow valve with a 1/2-inch NPT port connection and a BtuH capacity of 140,000. The valve operates within an ambient temperature range of -40 degrees to 175 degrees F.
