- Voltage: 110V, 120V
- Body Material: Aluminum
- Ambient Temperature - Maximum: 150 Degrees F
- Operating Pressure Differential Water - Maximum: Not Rated
- Frequency: 50 Hz, 60 Hz
- Ambient Temperature - Minimum: -40 Degrees F
Specifications
| Part Number | P159A120X1X11F0 |
| Brand | Asco |
| Voltage | 110V, 120V |
| Electrical Connections | 1/2 in |
| Body Material | Aluminum |
| Standards | CSA Certified, EN 161 Class A, FM Approved, RoHS, UL Listed |
| Ambient Temperature - Maximum | 150 Degrees F |
| Overall Width | 5 3/16 in |
| Overall Length | 5 3/16 in |
| Overall Height | 8 11/16 in |
| Item | Solenoid Valve |
| Operating Pressure Differential Water - Maximum | Not Rated |
| Frequency | 50 Hz, 60 Hz |
| Environmental Rating | Indoor, Outdoor |
| Ambient Temperature - Minimum | -40 Degrees F |
| Operating Pressure Differential Light Oil - Maximum | Not Rated |
| Wattage | 240 VA |
| Operating Pressure Differential Steam - Maximum | Not Rated |
| Operating Pressure Differential Hot Water - Maximum | Not Rated |
| Mounting Orientation | Horizontal or Vertical |
| Application | Boilers, Dryers, Furnaces, Heating Systems, Incinerators, Ovens, Thermal Oxidizers |
| For Media | Gases |
| Product Type | Motorized Actuator |
| Operating Pressure Differential - Maximum | 20 psi |
| Coil Enclosure | Watertight |
| Valve Starting Configuration | Configurable |
| Response Time | 1 sec |
| Coil Insulation Class | A |
| Compatible with Series | 158/V710 |
| Compatible with Brand | ASCO |
| Valve Positions | 2-Position |
Description

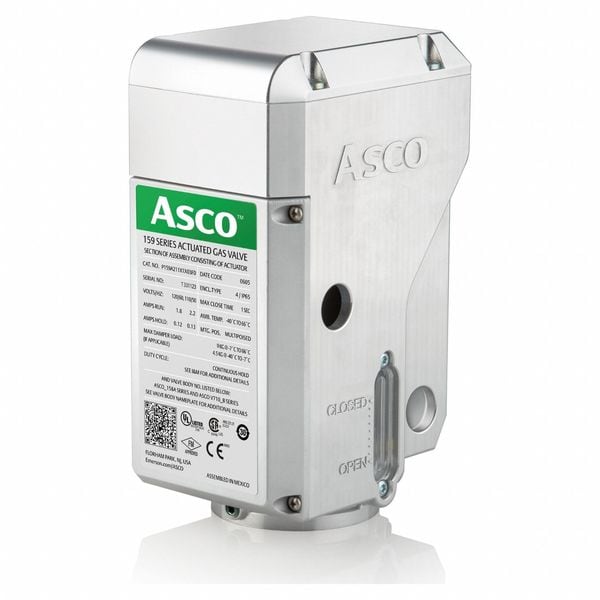

The Asco P159A120X1X11F0 is a solenoid valve for gas valve applications. This type of valve uses an electromagnetic coil to control gas flow. It is used with gas valve 8158 and a 120V 26-second actuator with damper arm, operating at 110V or 120V and 50/60 Hz. The valve is CSA Certified, EN 161 Class A, FM Approved, RoHS, and UL Listed, with an aluminum body and 1/2-inch electrical connections.
