- Phase: Single
- HP: 1/3
- RPM Range: 1,001-1,100
- Voltage: 115V AC
- Hz: 60
- Voltage Compatibility: 115V AC, 120V AC
Specifications
| Part Number | OLE1036A |
| Brand | Century |
| Motor Design | Permanent Split Capacitor |
| Phase | Single |
| HP | 1/3 |
| RPM Range | 1,001-1,100 |
| No. of Speeds | 4 |
| Shaft Dia. | 1/2 in |
| Length Less Shaft | 4 3/4 in |
| Shaft Length | 5 1/8 in |
| Body Dia. | 5.7 in |
| Overall Length | 9 7/8 in |
| Resilient Ring Dia. | 2 1/2 in |
| Lead Length | 50" |
| Voltage | 115V AC |
| Motor Shaft Rotation | CCWLE |
| Frame | 48Y |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Ring |
| Replacement For | 321P267 |
| Hz | 60 |
| Ins. Class | B |
| Voltage Compatibility | 115V AC, 120V AC |
| Motor Service Factor | 1 |
| Nameplate RPM | 1,075 |
| Motor Sub Application | Condenser Fan |
| OEM Replacement Brand | Lennox |
| Motor Bearings | Sleeve |
| Max. Ambient Temp. | 40 Degrees C |
| Capacitor Required | 2MDV4 |
| Motor Application | OEM Replacement |
| Number of Shafts | 1 |
| Item | Condenser Fan Motor |
| Full Load Amps | 6 A |
| Motor Shaft Design | Flat |
| Application | Lennox |
| Duty | Continuous |
| Motor Thermal Protection | Auto |
| Standards | CSA Certified, UL Recognized |
| Weight | 10 lb |
| Usable @ 208V | Not Usable at 208V |
| Motor Frame Material | Steel |
| Usable @ 200V | Not Usable at 200V |
| Ring to Ring Center | 4 3/4 in |
| Motor Mounting Position | Horizontal |
| Rotation | CCWLE |
| Mounting | Ring |
| Number of Speeds | 4 |
Description

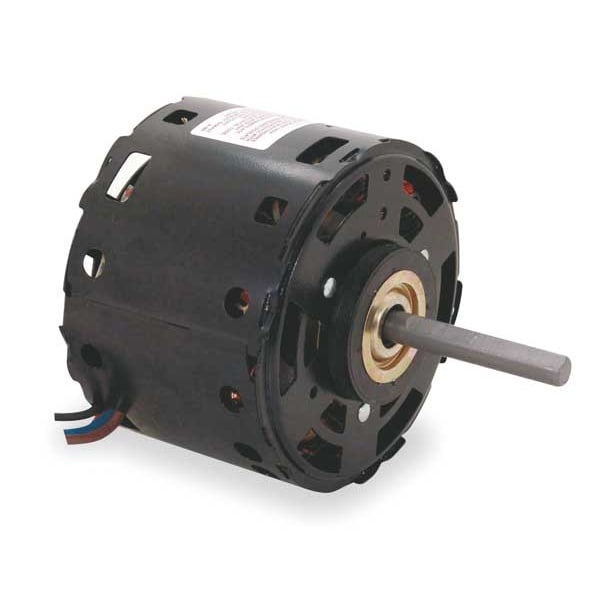

The Century OLE1036A is a single-phase condenser fan motor rated at 1/3 HP, 115V AC, and 1075 RPM. This open air-over motor drives the fan in a condenser unit to move air across the coil for heat exchange. It is a 4-speed, 48Y frame ring-mount motor compatible with 115V AC and 120V AC power supplies.
