- HP: 3/4 HP
- Nameplate RPM: 1075 rpm
- Phase: 3
- RPM Range: 1,001-1,100
- Voltage: 460V
- Max. Ambient Temp.: 40 Degrees C
Specifications
| Part Number | LX7930 |
| Brand | U.S. Motors |
| Frame | 48Y |
| HP | 3/4 HP |
| Motor Application | OEM Replacement |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air-Over |
| Shaft Dia. | 1/2 in |
| Shaft Length | 2 1/2 in |
| Length Less Shaft | 6 3/8 in |
| Body Dia. | 5.6" |
| Manufacturers Warranty Length | 1 yr. |
| Overall Length | 8 7/8 in |
| Item | Motor |
| Motor Mounting Type | Ring |
| Motor Shaft Rotation | Counterclockwise Lead End |
| Motor Sub Application | Direct Drive Blower |
| Motor Thermal Protection | None |
| Nameplate RPM | 1075 rpm |
| No. of Speeds | 3 |
| Number of Shafts | 1 |
| OEM Replacement Brand | Lennox |
| Phase | 3 |
| RPM Range | 1,001-1,100 |
| Voltage | 460V |
| Motor Bearings | Self Align Bearings |
| Ins. Class | B |
| Max. Ambient Temp. | 40 Degrees C |
| Duty | Open Air Over |
| Full Load Amps | 2.3A |
| Capacitor Required | Included |
| Standards | CSA Certified, UL Listed |
| Hz | 60 Hz |
| Application | Blower |
| Voltage Compatibility | 460V AC |
| Includes | Shaft Ground Ring |
| Motor Mounting Position | All Angle |
Description

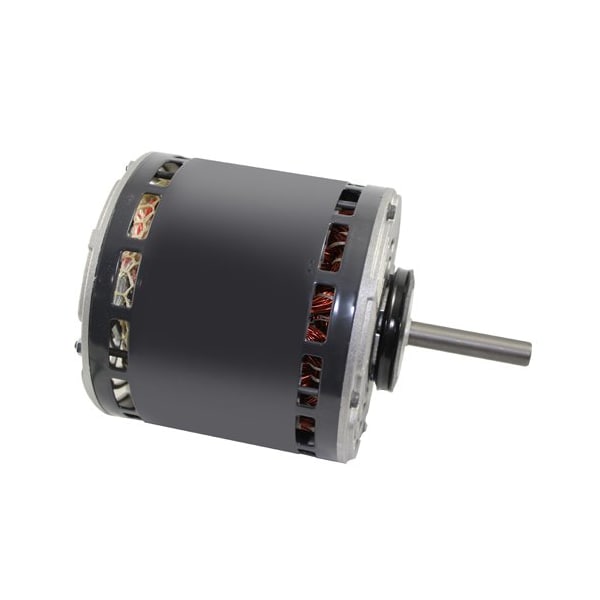

The LX7930 by U.S. Motors is a 3/4 HP direct drive blower motor. This motor converts electrical energy into mechanical rotation to power a blower wheel. It is an OEM replacement motor with an open air-over enclosure and a ring mount, operating at 1075 rpm on a 460V, 60Hz, 3-phase power supply.
