- HP: 1/4
- RPM Range: 1,601-1,700
- Nameplate RPM: 1,625
- Voltage: 460V AC
- Stud Size: 8-32
- Phase: Single
Specifications
| Part Number | FH1024 |
| Brand | Century |
| Motor Design | Permanent Split Capacitor |
| HP | 1/4 |
| RPM Range | 1,601-1,700 |
| Nameplate RPM | 1,625 |
| Voltage | 460V AC |
| Overall Length | 11 3/4 in |
| Body Dia. | 5 5/8 in |
| Shaft Length | 6 3/8 in |
| Stud Size | 8-32 |
| Length Less Shaft | 5 5/16 in |
| Shaft Dia. | 1/2 in |
| Lead Length | 27 in |
| Item | Condenser Fan Motor |
| Frame | 48Y |
| Motor Mounting Type | Stud |
| Phase | Single |
| Motor Enclosure Design | Open Air-Over |
| Application | Condenser Fan, Heat Pump, Refrigeration |
| Full Load Amps | 0.90 A |
| Capacitor Required | Included |
| Motor Bearings | Ball |
| Motor Application | HVAC/R |
| Motor Shaft Rotation | CCW |
| Hz | 60 Hz |
| Standards | CSA Certified, UL Listed |
| Motor Mounting Position | All Angle |
| Motor Shaft Design | Flat |
| Max. Ambient Temp. | 60 Degrees C |
| No. of Speeds | 2 |
| Motor Sub Application | Condenser Fan; Heat Pump |
| Motor Service Factor | 1 |
| Ins. Class | B |
| Motor Thermal Protection | Auto |
| Voltage Compatibility | 460V AC |
Description

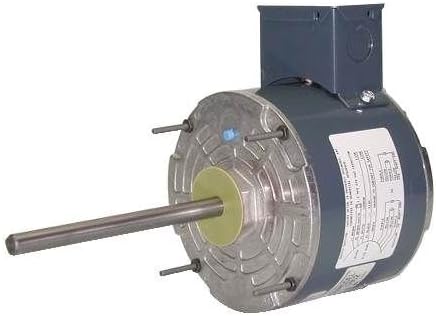

The Century FH1024 is a 1/4 HP condenser fan motor with a single-phase, 460V AC, 1,625 RPM (1,601-1,700 RPM range) rating in an open air-over enclosure. As a condenser fan motor, it drives the fan blade to move air across the condenser coil in an outdoor HVAC unit. This motor uses a stud mounting type.
