- HP: 1/4
- RPM Range: 1,601-1,700
- Voltage: 115V AC
- Hz: 60 Hz
- Nameplate RPM: 1,625 RPM
- Full Load Amps: 2 A
Specifications
| Part Number | DSB1024 |
| Brand | Century |
| Motor Design | Permanent Split Capacitor |
| HP | 1/4 |
| RPM Range | 1,601-1,700 |
| No. of Speeds | 2 |
| Voltage | 115V AC |
| Shaft Dia. | 1/2 in |
| Lead Length | 25 in |
| Length Less Shaft | 4 9/16 in |
| Body Dia. | 5 5/8 in |
| Shaft Length | 7 1/2 in |
| Resilient Ring Dia. | 2 1/2 in |
| Overall Length | 19 1/8 in |
| Motor Shaft Rotation | CCWLE |
| Frame | 48Y |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Resilient Base |
| Ring to Ring Center | 4 5/8 in |
| Hz | 60 Hz |
| Nameplate RPM | 1,625 RPM |
| Motor Application | HVAC/R |
| Full Load Amps | 2 A |
| Motor Sub Application | Fan Coil, Room Air Conditioner Motor |
| Phase | 1 |
| Standards | CSA Certified, UL Recognized |
| Ins. Class | B |
| Motor Bearings | Sleeve |
| Voltage Compatibility | 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC |
| Motor Thermal Protection | Auto |
| Duty | Continuous |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Design | Flat |
| Motor Service Factor | 1 |
| Item | Room Air Conditioner Motor |
| Capacitor Required | Included |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Weight | 15 lb |
| Usable @ 208V | No |
| Includes | Resilient Base |
| Number of Shafts | 2 |
| Usable @ 200V | No |
| Duty Cycle | Continuous |
| Conduit Box Position | F3 |
| Mounting | Cradle Base |
| Application | For Room Air Conditioners, Fan Coil Console Units, Packaged Heat Pumps and Other Double Shaft and Shaft-mounted Fan and Blower |
| Number of Speeds | 2 |
Description

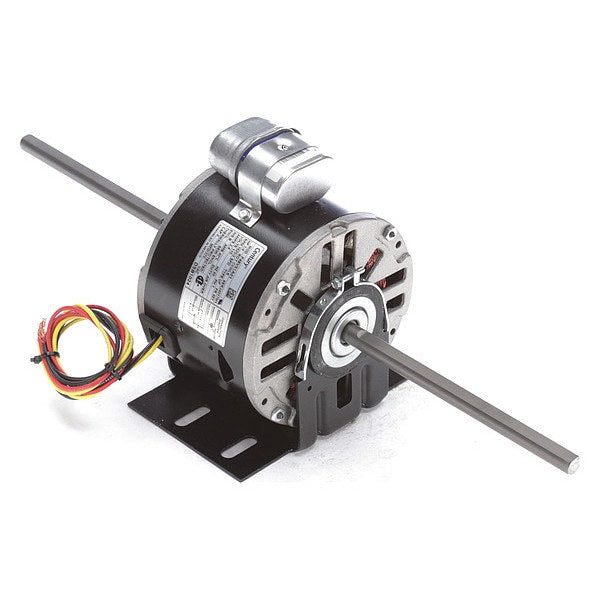

The Century DSB1024 is a 1/4 HP, 115V AC, 60 Hz room air conditioner motor with a permanent split capacitor (PSC) design. This open air-over (OAO) motor operates at a nameplate RPM of 1,625 and features a resilient base mounting. It is a two-speed, 48-frame motor used in HVAC/R applications.
