- HP: 1/16 HP
- Stud Size: #8-32
- Nameplate RPM: 3450 rpm
- Phase: 1
- RPM Range: 3001-3600
- Voltage: 208-230V
Specifications
| Part Number | D1182 |
| Brand | Fasco |
| Frame | 3.3 |
| HP | 1/16 HP |
| Motor Application | OEM Replacement |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air-Over |
| Shaft Dia. | 5/16" |
| Shaft Length | 3.35" |
| Length Less Shaft | 4 13/16 in |
| Bolt Circle Dia. | 2-13/16" |
| Body Dia. | 3.3" |
| Manufacturers Warranty Length | 1 yr. |
| Overall Length | 8.16" |
| Stud Size | #8-32 |
| Item | Motor |
| Motor Mounting Type | Extended Studs |
| Motor Shaft Rotation | Counterclockwise Shaft End |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Automatic |
| Nameplate RPM | 3450 rpm |
| No. of Speeds | 1 |
| Number of Shafts | 1 |
| OEM Replacement Brand | Carrier/BDP |
| Phase | 1 |
| RPM Range | 3001-3600 |
| Voltage | 208-230V |
| Motor Bearings | Ball |
| Replacement For | 7162-3367 |
| Ins. Class | B |
| Max. Ambient Temp. | 40 Degrees C |
| Duty | Air Over |
| Full Load Amps | 0.6A |
| Capacitor Required | Included |
| Standards | UL Recognized, CSA Certified |
| Motor Shaft Design | Double Flat |
| Hz | 60 Hz |
| Motor Service Factor | 1.00 |
| Application | Fans and Blowers |
| Mounting Stud Pattern | 4" x 4" |
| Voltage Compatibility | 115/208-230V AC, 208-230V AC, 208-240V AC |
| Weight | 4 lb |
| Usable @ 208V | Usable at 208V |
| Motor Frame Material | Steel |
| Usable @ 200V | Not Usable at 200V |
| Number of Speeds | 1 |
Description

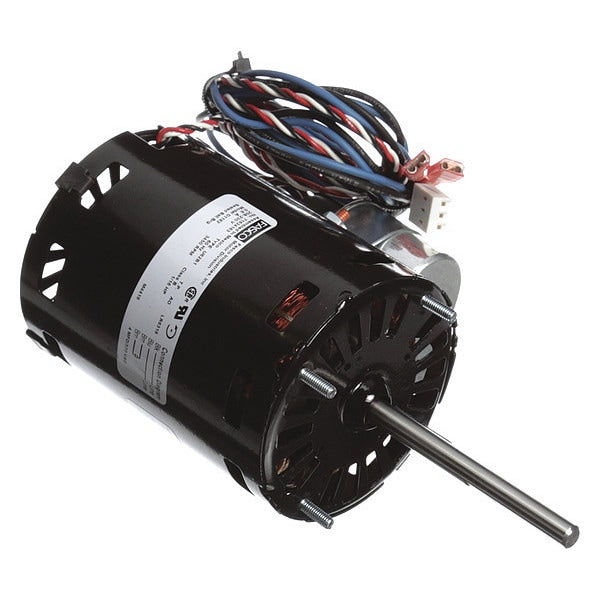

The Fasco D1182 is a 1/16 HP, 3450 RPM, 1-phase PSC motor with an open air-over enclosure and extended studs mounting. As an OEM replacement, this condenser fan motor is designed to replace Carrier/BDP part number 7162-3367.
