- Phase: Single
- HP: 1
- RPM Range: 1,001-1,100
- Stud Size: #10-32
- Voltage: 200-230/460V AC
- Full Load Amps: 2.4/4.8 A
Specifications
| Part Number | C770V1 |
| Brand | Century |
| Motor Design | Permanent Split Capacitor |
| Phase | Single |
| HP | 1 |
| RPM Range | 1,001-1,100 |
| No. of Speeds | 1 |
| Body Dia. | 6 1/2 in |
| Shaft Length | 6 in |
| Length Less Shaft | 10 13/16 in |
| Resilient Ring Dia. | 2 1/2 in |
| Overall Length | 16 13/16 in |
| Shaft Dia. | 5/8 in |
| Stud Size | #10-32 |
| Bolt Circle Dia. | 5 13/16 in |
| Mounting Stud Length | 1 in |
| Voltage | 200-230/460V AC |
| Motor Shaft Rotation | CW/CCW |
| Frame | 56Y |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Resilient Base |
| Mounting Stud Pattern | 4 1/8 in x 4 1/8 in |
| Full Load Amps | 2.4/4.8 A |
| Motor Application | HVAC/R |
| Motor Shaft Design | Keyed |
| Motor Sub Application | Condenser Fan |
| Ins. Class | B |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC |
| Ring to Ring Center | 10 5/16 in |
| Max. Ambient Temp. | 60 Degrees C |
| Motor Thermal Protection | Auto |
| Standards | CSA Certified, UL Recognized |
| Features | Internal Conduit Box for Enclosed Wiring Connection |
| Motor Bearings | Ball |
| Stud Quantity | 4 |
| Capacitor Required | 2MDW3 |
| Motor Mounting Position | Vertical Shaft Up |
| Duty | Continuous |
| Nameplate RPM | 1,075 |
| Motor Service Factor | 1 |
| Nominal Efficiency | 72 % |
| Hz | 60 Hz |
| Item | Condenser Fan Motor |
| Weight | 35 lb |
| Motor Frame Material | Steel |
| Usable @ 208V | Yes |
| Duty Cycle | Continuous |
| Output Watts | 750 W |
| Usable @ 200V | Yes |
| Conduit Box Location | Interior |
| Mounting | Stud |
Description

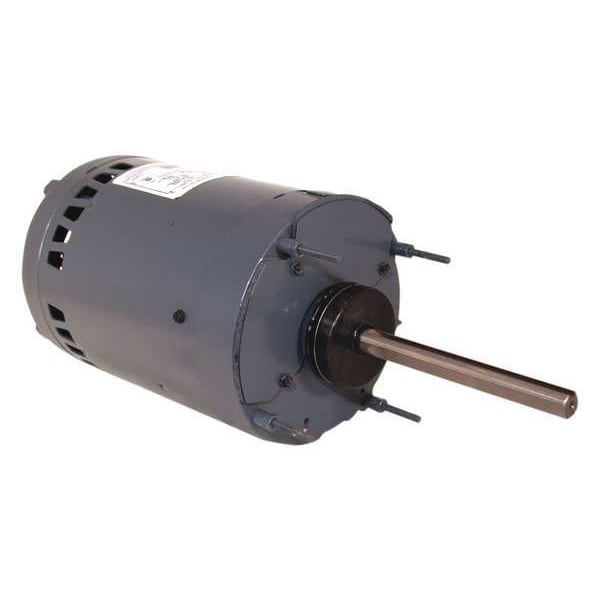

The Century C770V1 is a 1 hp condenser fan motor designed for HVAC/R applications. This single-phase motor operates at 200-230/460V AC with a full load amperage of 2.4/4.8 A and a speed range of 1,001-1,100 RPM. It features an open air-over enclosure and a resilient base mounting type.
