- Phase: Single
- HP: 1/8 to 1/12
- RPM Range: 1,001-1,100
- Stud Size: #8-32
- Voltage: 208-230V AC
- Full Load Amps: 0.9 A
Specifications
| Part Number | 9722 |
| Brand | Century |
| Motor Design | Permanent Split Capacitor |
| Phase | Single |
| HP | 1/8 to 1/12 |
| RPM Range | 1,001-1,100 |
| No. of Speeds | 1 |
| Stud Size | #8-32 |
| Overall Length | 7 1/2 in |
| Lead Length | 36 in |
| Length Less Shaft | 4 1/2 in |
| Shaft Dia. | 1/2 in |
| Shaft Length | 3 in |
| Body Dia. | 5 in |
| Mounting Stud Length | 1/2 in |
| Bolt Circle Dia. | 4 5/8 in |
| Voltage | 208-230V AC |
| Motor Shaft Rotation | CW/CCW |
| Frame | 42 |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Motor Mounting Type | Stud |
| Full Load Amps | 0.9 A |
| Motor Thermal Protection | Auto |
| Features | Extend Studs Shaft End and Opposite Shaft End, Thermally Protected |
| Motor Bearings | Ball |
| Item | Condenser Fan Motor |
| Capacitor Required | 2MDY5 |
| Hz | 60 Hz |
| Motor Shaft Design | Flat |
| Ins. Class | B |
| Max. Ambient Temp. | 60 Degrees C |
| Nameplate RPM | 1,075 |
| Stud Quantity | 4 |
| Motor Service Factor | 1 |
| Voltage Compatibility | 115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC |
| Standards | CSA Certified, UL Recognized |
| Motor Mounting Position | All Angle |
| Motor Sub Application | Condenser Fan |
| Duty | Continuous |
| Motor Application | HVAC/R |
| Duty Cycle | Continuous |
| Usable @ 200V | No |
| Output Watts | 100 W |
| Weight | 10 lb |
| Motor Frame Material | Steel |
| Usable @ 208V | Yes |
| Mounting | Stud |
Description

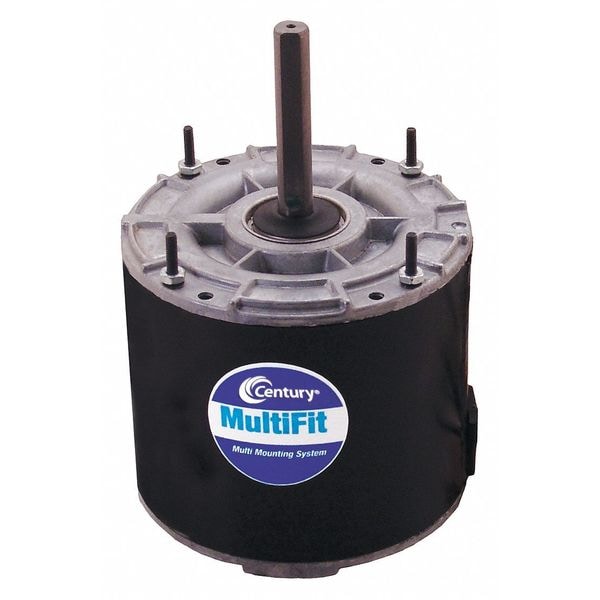

The Century 9722 is a single-phase condenser fan motor rated at 1/8 to 1/12 HP, 208-230V AC, and 0.9 full load amps. This motor drives the fan in a condenser unit to move air across the coil for heat rejection. It features a totally enclosed air-over enclosure, stud mounting, and extended studs on both shaft ends, and is thermally protected.
