- Phase: Single
- Horsepower: 3/8 hp
- Nameplate Voltage: 115/230V AC
- Impeller Material: Composite
- Media Temperature - Maximum: 230 Degrees F
- Frequency: 60 Hz
Specifications
| Part Number | 99833304 |
| Brand | Grundfos |
| Phase | Single |
| Horsepower | 3/8 hp |
| Number of Speeds | Variable |
| Maximum Flow Rate @ 10 Feet of Head | 53 gpm |
| Manufacturer Warranty Length | 30 mo |
| Overall Length | 9.1 in |
| Overall Width | 10.12 in |
| Face to Face Dimension | 6 1/2 in |
| Overall Height | 6.61 in |
| Item | Circulating Pump |
| Nameplate Voltage | 115/230V AC |
| Maximum Flow Rate @ 30 Feet of Head | 26 gpm |
| Impeller Material | Composite |
| Standards | ASTM A48-250B, cETLus, EN 1561 EN-GJL-250, Proposition 65 |
| Maximum Flow Rate @ 15 Feet of Head | 49 gpm |
| Includes Volute | Volute Included |
| Motor Enclosure Design | Totally Enclosed Non-Ventilated |
| Media Temperature - Maximum | 230 Degrees F |
| Pump Construction | 2-Piece |
| ANSI Flange Class | Class 150 |
| Mounting Orientation | Horizontal, Vertical |
| Operating Modes | Constant Pressure, Constant Speed, Proportional Pressure |
| Priming | Self-Priming |
| Rotor Type | Wet |
| For Low Lead Compliance Level | CE |
| Motor Design | Permanent Magnet AC Motor |
| For Media Type | Clear Water |
| Includes Flange | Flange Included |
| Feet of Head - Maximum | 39 ft |
| Includes Timer | No Timer Included |
| Frequency | 60 Hz |
| Number of Pump Heads | 1 |
| Flow Rate - Maximum | 49 gpm |
| Revolutions Per Minute - Maximum | 4,557 RPM |
| Connection Standard | Flange |
| Application | Circulating |
| Thermostat Included | No Thermostat Included |
| Includes Union | No Union Included |
| Connectivity | Bluetooth |
| Pump Technology | Centrifugal |
| Electrical Connection Type | Plug-In |
| Pump Casing Material | Cast Iron |
| Operating Pressure - Maximum | 174 psi |
| Number of Flange Mounting Holes | 2 |
| Full Load Current | 1.67 A |
| Media Temperature - Minimum | 14 Degrees F |
Description

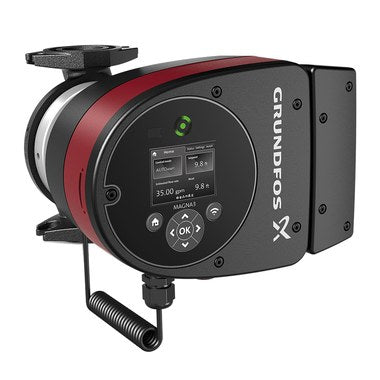

The Grundfos 99833304 is a Magna3 32-120GF circulating pump with a 3/8 hp motor. This pump circulates fluid in a hydronic system, operating on single-phase 115/230V AC power. It has a composite impeller and is rated for a maximum flow of 53 gpm at 10 feet of head and 26 gpm at 30 feet of head, meeting ASTM A48-250B, cETLus, EN 1561 EN-GJL-250, and Proposition 65 standards.
