- Voltage: 240V AC
- Phase: Single
- Horsepower: 1/3 hp
- Compatible Intake Pipe Size: 3/4 in, 1 in, 1 1/4 in, 1 1/2 in
- For Inlet Pipe Diameter: 3/4 in, 1 in, 1 1/4 in, 1 1/2 in
- Amps: 1.2/1.5/1.7 A
Specifications
| Part Number | 95906631 |
| Brand | Grundfos |
| Voltage | 240V AC |
| Phase | Single |
| Horsepower | 1/3 hp |
| Series | UPS |
| Pump Type | Multi-Speed |
| Face to Face Dimension | 6 1/2 in |
| Compatible Intake Pipe Size | 3/4 in, 1 in, 1 1/4 in, 1 1/2 in |
| Manufacturer Warranty Length | 1 yr |
| For Inlet Pipe Diameter | 3/4 in, 1 in, 1 1/4 in, 1 1/2 in |
| Item | Hydronic Circulating Pump |
| Number of Speeds | 3 |
| Maximum Feet of Head | 45 ft |
| Connection Type | Flange |
| Amps | 1.2/1.5/1.7 A |
| Standards | CSA Certified, EN-GJL-200, ETL |
| Impeller Material | Composite/PES |
| Includes | (2) Gaskets |
| Application | Circulating |
| Pump Housing Material | Cast Iron |
| Maximum Flow Rate @ 50 Feet of Head | [DELETE] |
| Maximum Flow Rate @ 1 Feet of Head | 52 gpm |
| Compatible Media Type | Water |
| Flange or Union Included | Yes |
| For Use With Potable Systems | No |
| Nameplate Voltage | 230V AC |
| Maximum Media Temperature | 230 Degrees F |
| Maximum Flow Rate @ 15 Feet of Head | 38 gpm |
| Minimum Media Temperature | 32 Degrees F |
| Maximum Flow Rate @ 10 Feet of Head | 44 gpm |
| Maximum Flow Rate @ 40 Feet of Head | 10 gpm |
| Frequency | 60 Hz |
| Maximum Flow Rate @ 20 Feet of Head | 33 gpm |
| Maximum Flow Rate @ 30 Feet of Head | 22 gpm |
| Maximum Flow Rate @ 25 Feet of Head | 28 gpm |
| Maximum Operating Pressure | 145 psi |
| Maximum Flow Rate @ 5 Feet of Head | 48 gpm |
| Rotor Type | Wet |
| Full Load Current | 1.2/1.5/1.7 A |
| Mounting Orientation | Horizontal |
| Motor Design | Permanent Split Capacitor |
| Electrical Connection Type | Hardwired |
| Number of Pump Heads | 1 |
| Connection Standard | Flange |
| Includes Union | No Union Included |
| Pump Technology | Centrifugal |
| Pump Casing Material | Cast Iron |
| Flow Rate - Maximum | 27 gpm |
| Feet of Head - Maximum | 45 ft |
| Motor Enclosure Design | Totally Enclosed Non-Ventilated |
| Priming | Self-Priming |
| Thermostat Included | No Thermostat Included |
| Includes Volute | Volute Included |
| Operating Modes | Constant Pressure |
| Media Temperature - Minimum | 32 Degrees F |
| Includes Timer | No Timer Included |
| Includes Flange | Flange Included |
| Requires Dedicated Return Line | No Dedicated Return Line Required |
| For Media Type | Clear Water |
| Pump Construction | 2-Piece |
| Operating Pressure - Maximum | 145 psi |
| Number of Flange Mounting Holes | 2 |
| Media Temperature - Maximum | 230 Degrees F |
| ANSI Flange Class | Class 150 |
| For Low Lead Compliance Level | EX |
Description

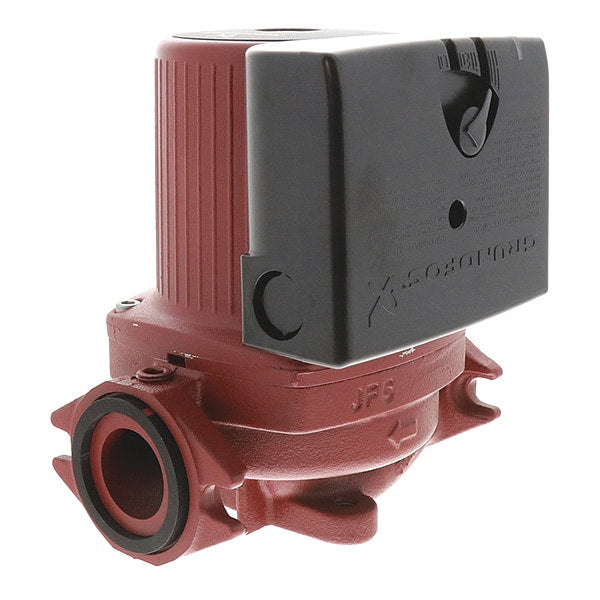

The Grundfos 95906631 is a UPS Series hydronic circulating pump with a 1/3 hp, 240V AC, single-phase, multi-speed motor. As a circulating pump, it moves water through a hydronic heating or cooling system. This flange-connected model is compatible with intake pipe sizes of 3/4 in, 1 in, 1 1/4 in, and 1 1/2 in.
