- Float Material: Plastic
- Tank Material: Polypropylene
- Compatible Discharge Pipe Size: 3/8 in
- Compatible Intake Pipe Size: 1 in
- For Discharge Pipe Diameter: 3/8 in
- For Inlet Pipe Diameter: 1 1/8 in
Specifications
| Part Number | 554650 |
| Brand | Little Giant Pump |
| Pump Type | Standard |
| Float Material | Plastic |
| Tank Material | Polypropylene |
| Standards | cCSAus |
| Application | Condensate Removal |
| Cord Length | 6 ft |
| Manufacturer Warranty Length | 3 yr |
| Compatible Discharge Pipe Size | 3/8 in |
| Overall Width | 4.8 in |
| Overall Length | 10.2 in |
| Overall Height | 6.5 in |
| Compatible Intake Pipe Size | 1 in |
| For Discharge Pipe Diameter | 3/8 in |
| For Inlet Pipe Diameter | 1 1/8 in |
| Item | Condensate Removal Pump |
| Amps | 1.5 A |
| Includes | 20 ft. 3/8 in. Vinyl Discharge Tubing, External Test/Run Lever |
| Maximum Flow Rate @ 1 Feet of Head | 1.4 gpm |
| Intake Connection Style | Barbed |
| Shut Off Level | 1.2 in |
| Series Family | VCMA |
| Frequency | 60 Hz |
| Maximum Media Temperature | 284 Degrees F |
| Discharge Connection Style | Barbed |
| Horsepower | 1/16 hp |
| Maximum Operating Pressure | 9.1 psi |
| Series | VCMA-20 Pro |
| Pump Housing Material | ABS |
| Compatible Media Type | Condensate |
| Maximum Feet of Head | 21 ft |
| Wetted Material | ABS, Poly |
| Priming | Self-Priming |
| Nameplate Voltage | 115V AC |
| Minimum Ambient Temperature | 32 Degrees F |
| Plenum Rated | No |
| Maximum Flow Rate @ 10 Feet of Head | 1 gpm |
| Pump Activation Type | Float Switch |
| Turn On Level | 1.6 in |
| Number of Intakes | 3 |
| Maximum Flow Rate @ 20 Feet of Head | 0.17 gpm |
| Electrical Connection Type | Plug-In |
| Maximum Flow Rate @ 5 Feet of Head | 1.25 gpm |
| Maximum Flow Rate @ 15 Feet of Head | 0.7 gpm |
| Maximum Ambient Temperature | 140 Degrees F |
| Minimum Media Temperature | 32 Degrees F |
| For Use With Potable Systems | No |
| Phase | Single |
| Tank Capacity | 5/8 gal |
| For Media Type | Clear Water |
| Pump Casing Material | Plastic |
| Installation | Floor Standing |
| Feet of Head - Maximum | 21 ft |
| Pump Technology | Centrifugal |
| For HVAC System Duct | Ducted |
| Ambient Temperature - Minimum | 32 Degrees F |
| Media Temperature - Maximum | 140 Degrees F |
| Operating Pressure - Maximum | 9.1 psi |
| Full Load Current | 1.5 A |
| Inlet Standard | Open |
| Includes Tubing | Tubing Included |
| Media Temperature - Minimum | 33 Degrees F |
| Discharge Standard | Barbed |
| Power Source | Corded Electric |
| Includes Safety Switch | Safety Switch Included |
| Tank Opacity | Solid |
| Number of Inlets | 3 |
| Ambient Temperature - Maximum | 140 Degrees F |
| Product Type | Condensate Removal Pump |
Description

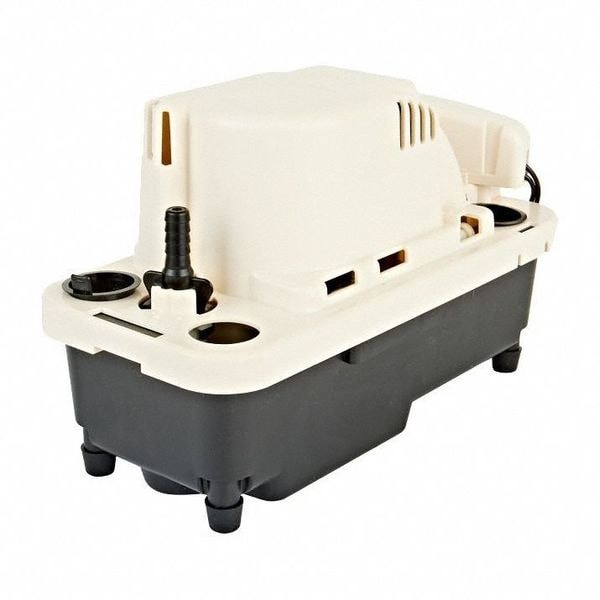

The Little Giant Pump 554650 is a condensate removal pump. This type of pump automatically removes collected condensate from HVAC equipment. It is a standard pump with a polypropylene tank and plastic float, rated at 1/30 hp and 115V, and is cCSAus certified.
