- Reservoir Size - Pumps: Small
- HP - Pumps: 1/30 hp
- Voltage - Pumps: 230 V AC
- Reservoir Capacity - Pumps: 1/3 gal
- Discharge Size - Pumps: 3/8 in Barb
- Compatible Discharge Pipe Size: 3/8 in
Specifications
| Part Number | 554202101 |
| Brand | Little Giant Pump |
| Condensate Pumps - Type | Low Profile |
| Reservoir Size - Pumps | Small |
| HP - Pumps | 1/30 hp |
| Voltage - Pumps | 230 V AC |
| Reservoir Capacity - Pumps | 1/3 gal |
| Discharge Size - Pumps | 3/8 in Barb |
| Height | 5 9/100 in |
| Length | 12 in |
| Cord Length | 6 ft |
| Width | 5 in |
| Overall Width | 5 in |
| Overall Length | 12 in |
| Overall Height | 5.09 in |
| Compatible Discharge Pipe Size | 3/8 in |
| Compatible Intake Pipe Size | 3/4 in |
| Manufacturer Warranty Length | 1 yr |
| For Inlet Pipe Diameter | 3/4 in |
| For Discharge Pipe Diameter | 3/8 in |
| Item | Condensate Removal Pump |
| Max. Temp - Pumps | 120 Degrees F |
| Max. Pressure | 7.4 psi |
| Watts | 75 W |
| GPH of Water @ 12 Ft. of Head | 50 gph |
| GPH of Water @ 40 Ft. of Head | 0 gph |
| Standards | cULus |
| GPH of Water @ 5 Ft. of Head | 70 gph |
| Application | Condensate Removal |
| GPH of Water @ 30 Ft. of Head | 0 gph |
| GPH of Water @ 20 Ft. of Head | 0 gph |
| Tank Material | Plastic |
| Includes | 1/4" O.D. Barbed Discharge Adapter |
| Pump Type | Low Profile |
| Shaft Material | Stainless Steel |
| Max. Head - Pumps | 20 ft |
| Amps | 0.6 A |
| GPH of Water @ 1 Ft. of Head | 80 gph |
| GPH of Water @ 15 Ft. of Head | 25 gph |
| Float Material | Polypropylene |
| GPH of Water @ 9 Ft. of Head | 50 gph |
| Pump Activation Type | Float Switch |
| Compatible Media Type | Water |
| Shut Off Level | 0.45 in |
| Turn On Level | 1.06 in |
| Series | VCCA-20ULS |
| Maximum Flow Rate @ 15 Feet of Head | 0.42 gpm |
| Maximum Flow Rate @ 10 Feet of Head | 0.75 gpm |
| Maximum Media Temperature | 120 Degrees F |
| Horsepower | 1/16 hp |
| Maximum Feet of Head | 20 ft |
| Maximum Flow Rate @ 1 Feet of Head | 1.33 gpm |
| Discharge Connection Style | Barbed |
| Intake Connection Style | Open |
| Maximum Operating Pressure | 7.4 psi |
| Series Family | VCCA |
| Plenum Rated | No |
| Nameplate Voltage | 230V AC |
| Maximum Ambient Temperature | 120 Degrees F |
| Tank Capacity | 7/16 gal |
| Body Gasket Material | Stainless Steel |
| Phase | Single |
| Maximum Flow Rate @ 5 Feet of Head | 1.17 gpm |
| Electrical Connection Type | Plug-In |
| For Use With Potable Systems | No |
| Frequency | 50/60 Hz |
| Number of Inlets | 3 |
| Inlet Standard | Open |
| Feet of Head - Maximum | 20 ft |
| Operating Pressure - Maximum | 7.4 psi |
| Includes Tubing | No Tubing Included |
| Discharge Standard | Barbed |
| Includes Safety Switch | Safety Switch Included |
| Installation | Floor Standing |
| Ambient Temperature - Maximum | 120 Degrees F |
| For Media Type | Clear Water |
| For HVAC System Duct | Ducted |
| Tank Opacity | Solid |
| Media Temperature - Maximum | 120 Degrees F |
| Media Temperature - Minimum | 33 Degrees F |
| Power Source | Corded Electric |
| Full Load Current | 0.6 A |
| Pump Technology | Centrifugal |
| Product Type | Low Profile Condensate Removal Pump |
| Priming | Self-Priming |
Description

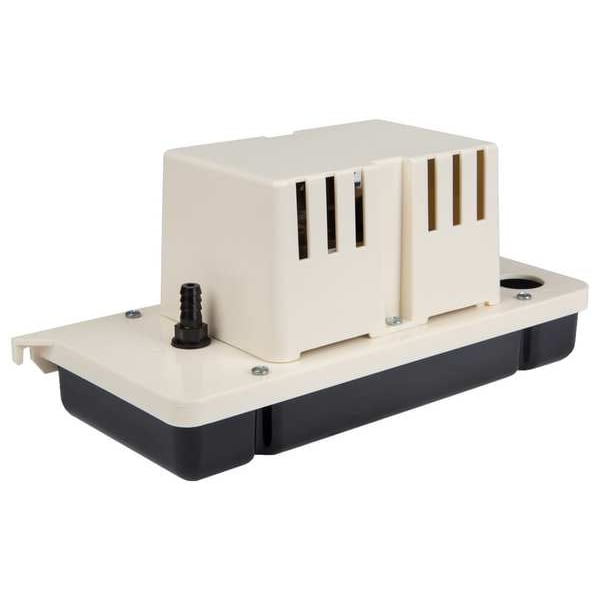

The Little Giant Pump 554202101 is a low-profile condensate removal pump. This type of pump automatically collects and removes condensation from HVAC equipment. It operates on 230 V AC with a 1/30 hp motor and has a 1/3-gallon reservoir capacity.
