- Reservoir Size - Pumps: Large
- Voltage: 230
- HP - Pumps: 1/5 hp
- Voltage - Pumps: 230V AC
- Discharge Size - Pumps: 3/8 in Copper Tube
- Compatible Intake Pipe Size: 1 1/8 in
Specifications
| Part Number | 553245 |
| Brand | Little Giant Pump |
| Condensate Pumps - Type | Condensate |
| Reservoir Size - Pumps | Large |
| Voltage | 230 |
| HP - Pumps | 1/5 hp |
| Voltage - Pumps | 230V AC |
| Discharge Size - Pumps | 3/8 in Copper Tube |
| Height | 10 1/2 in |
| Cord Length | 6 ft |
| Width | 6 in |
| Length | 12 in |
| Overall Height | 10.85 in |
| Overall Length | 12.11 in |
| Overall Width | 6 in |
| Compatible Intake Pipe Size | 1 1/8 in |
| Manufacturer Warranty Length | 1 yr |
| Compatible Discharge Pipe Size | 3/8 in |
| For Discharge Pipe Diameter | 3/8 in |
| For Inlet Pipe Diameter | 1 1/8 in |
| Item | Condensate Removal Pump |
| Reservoir Capacity - Pumps | 1 gal |
| Max. Temp - Pumps | 120 Degrees F |
| Max. Temp. | 120 Degrees F |
| GPH of Water @ 9 Ft. of Head | 415 |
| Max. Head - Pumps | 45 ft |
| GPH of Water @ 15 Ft. of Head | 380 |
| Includes | 5 in Lead Wires |
| Watts | 250 W |
| Standards | cCSAus |
| Shaft Material | Stainless Steel |
| Shut-Off | 45 ft. |
| Float Material | Polypropylene |
| GPH of Water @ 12 Ft. of Head | 400 |
| Discharge | 3/8" Copper Tube |
| GPH of Water @ 30 Ft. of Head | 250 |
| Reservoir Capacity | 1 gal. |
| Pump Type | Standard |
| HP | 1/5 |
| Amps | 1 A |
| GPH of Water @ 5 Ft. of Head | 440 |
| GPH of Water @ 1 Ft. of Head | 450 |
| Application | Condensate Removal |
| Tank Material | Plastic |
| Maximum Feet of Head | 45 ft |
| Frequency | 50/60 Hz |
| Shut Off Level | 2.18 in |
| Horsepower | 1/4 hp |
| Intake Connection Style | Open |
| Maximum Flow Rate @ 20 Feet of Head | 5.4 gpm |
| Phase | Single |
| Maximum Ambient Temperature | 120 Degrees F |
| Series Family | VCL |
| Pump Activation Type | Float Switch |
| Maximum Flow Rate @ 1 Feet of Head | 7.5 gpm |
| Compatible Media Type | Water |
| Maximum Flow Rate @ 30 Feet of Head | 3.5 gpm |
| Maximum Flow Rate @ 10 Feet of Head | 6.87 gpm |
| Turn On Level | 3.8 in |
| Maximum Flow Rate @ 25 Feet of Head | 4.17 gpm |
| Series | VCL-45ULS |
| Nameplate Voltage | 230V AC |
| Maximum Media Temperature | 120 Degrees F |
| Maximum Operating Pressure | 19.5 psi |
| Tank Capacity | 1 gal |
| Pump Housing Material | ABS Plastic |
| Maximum Flow Rate @ 15 Feet of Head | 6.33 gpm |
| Maximum Flow Rate @ 40 Feet of Head | 1 gpm |
| Discharge Connection Style | Barbed |
| Plenum Rated | No |
| Body Gasket Material | Stainless Steel |
| Maximum Flow Rate @ 5 Feet of Head | 7.33 gpm |
| For Use With Potable Systems | No |
| Electrical Connection Type | Plug-In |
| Feet of Head - Maximum | 45 ft |
| For Media Type | Clear Water |
| Includes Tubing | No Tubing Included |
| For HVAC System Duct | Ducted |
| Power Source | Corded Electric |
| Tank Opacity | Solid |
| Priming | Self-Priming |
| Product Type | Condensate Removal Pump |
| Operating Pressure - Maximum | 19.5 psi |
| Pump Casing Material | Plastic |
| Includes Safety Switch | Safety Switch Included |
| Number of Inlets | 1 |
| Media Temperature - Minimum | 33 Degrees F |
| Pump Technology | Centrifugal |
| Installation | Floor Standing |
| Media Temperature - Maximum | 120 Degrees F |
| Discharge Standard | Barbed |
| Full Load Current | 1 A |
| Ambient Temperature - Maximum | 120 Degrees F |
| Inlet Standard | Open |
Description

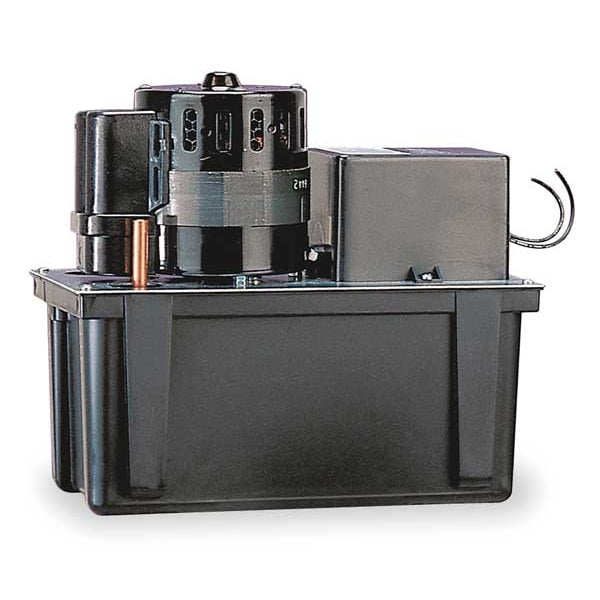

The Little Giant Pump 553245 is a 1/5 hp condensate removal pump designed for 230V AC operation. This condensate pump collects and removes water that accumulates from condensation in HVAC systems. It features a 1-gallon reservoir capacity and is compatible with a 1 1/8-inch intake pipe and a 3/8-inch discharge pipe.
