- Housing Material: Cast iron
- HP: 1/3
- Hz: 60 Hz
- Diameter: 7-1/4"
- Max. Diameter Solids: 1/8 in
- Sump Pit Diameter - Minimum: 18 in
Specifications
| Part Number | 506160 |
| Brand | Little Giant Pump |
| Cord Length | 8 ft |
| Discharge NPT | 1-1/2" F |
| Housing Material | Cast iron |
| HP | 1/3 |
| Hz | 60 Hz |
| Height | 7-1/4" |
| Diameter | 7-1/4" |
| Max. Diameter Solids | 1/8 in |
| Cord Length - Pumps | 8 ft. |
| Max. Dia. Solids | 1/8" |
| Manufacturers Warranty Length | 3 yr |
| Discharge Dia. | 1 1/2 in |
| Overall Height | 6 in |
| Sump Pit Diameter - Minimum | 18 in |
| Body Diameter | 7 1/2 in |
| Discharge Diameter | 1 1/2 in |
| Width at Widest Point | 9 1/2 in |
| Solids Diameter - Maximum | 0 in |
| Impeller Material | Nylon |
| Max. Head | 18 ft |
| Max. Temp. | 150 Degrees F |
| Shaft Seal | Carbon/Ceramic, Nitrile, Stainless Steel |
| Voltage | 115 |
| Phase | Single |
| Switch Type - Pumps | Diaphragm |
| Impeller Material - Pumps | Nylon |
| Item | Submersible Sump Pump |
| Shaft Seal Material - Pumps | Carbon, Ceramic, Nitrile, Stainless Steel |
| NEC Cord Designation | SJTW |
| Max. Head - Pumps | 18 ft. |
| Voltage - Pumps | 120VAC |
| Switch Type | Diaphragm |
| Pump Body Material | Cast Iron |
| Alarm Included | No |
| Base Material | Polypropylene |
| Max. Liquid Temp. | 150 Degrees F |
| Item - Sump Pumps | Submersible Sump Pump |
| Amps - Pumps | 9.00 |
| Amps | 9 A |
| Alarm | No |
| Gauge/Conductor | 18/3 |
| Thermal Protection | Auto |
| On Point | 4 - 7 in |
| Application | Dewatering, Transfer |
| Off Point | 1 1/2 - 3 1/2 in |
| Duty Cycle | Continuous |
| Switch Electrical Connection | Integral |
| Discharge | 1 1/2 in FNPT |
| Rated Voltage | 115V AC |
| Discharge Standard | NPT |
| Switch Actuation | Diaphragm |
| Body Material | Cast Iron |
| Discharge Gender | Female |
| Fits Brand | Little Giant |
| For Use With Mfr. Model Number | WRSC-6 |
| Hazardous Location Class | Not Rated |
| Shaft Seal Material | Ceramic/Nitrile Rubber |
| Requires Control Panel | No Control Panel Required |
| Volute Material | Plastic |
| Operation | Automatic |
| For Media Type | Clear Water |
| Series | 6-CIA-ML |
| For Industry | Residential |
| Motor Housing Material | Cast Iron |
| Frequency | 60 Hz |
| Installation | Submersible |
| Flow Rate @ 10 ft of Head | 29 gpm |
| Horsepower | 1/3 hp |
| Rotation Speed - Maximum | 1,500 RPM |
| Current | 9.0 A |
| Shaft Seal Type | Single Mechanical |
| Feet of Head - Maximum | 18 ft |
| Includes Alarm | No Alarm Included |
| Standards | cCSAus |
| Power Source | Corded Electric |
| Impeller Design | Non-Clog |
| Liquid Temperature - Maximum | 140 Degrees F |
Description

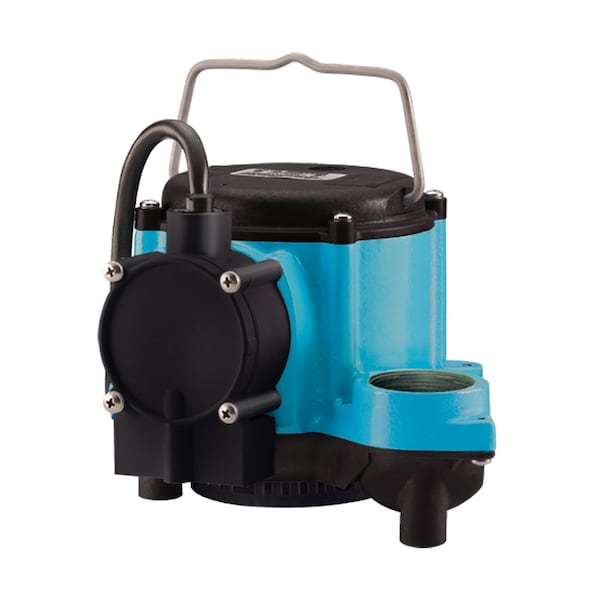

The Little Giant Pump 506160 is a 1/3 HP submersible sump pump with a 115-volt, single-phase, 60 Hz motor and a diaphragm switch. It features a cast iron housing and a nylon impeller, with a maximum fluid temperature of 150 degrees Fahrenheit.
