- HP: 1/40 hp
- Voltage: 115V
- Full Load Amps: 1.7 A
- Impeller Material: Nylon
- Compatible Intake Pipe Size: 3/8 in
- Compatible Discharge Pipe Size: 1/4 in
Specifications
| Part Number | 502203 |
| Brand | Little Giant Pump |
| HP | 1/40 hp |
| Voltage | 115V |
| Full Load Amps | 1.7 A |
| Cord Length | 6 ft |
| Impeller Material | Nylon |
| Width | 3 1/2 in |
| Length | 5 1/2 in |
| Height | 4 3/4 in |
| Overall Height | 4.8 in |
| Overall Length | 5.5 in |
| Overall Width | 3.5 in |
| Compatible Intake Pipe Size | 3/8 in |
| Compatible Discharge Pipe Size | 1/4 in |
| Item | Centrifugal Pump |
| Duty | Continuous |
| Max. Head | 11.8 ft |
| Seal Material | Nitrile |
| Features | Snap-On Pre-Filter Screen |
| Inlet | 3/8 in (F)NPT |
| GPH of Water @ 5 Ft. of Head | 205 |
| Outlet | 1/4 in (M)NPT |
| Hz | 60 |
| GPH of Water @ 10 Ft. of Head | 70 |
| GPH of Water @ 1 Ft. of Head | 300 |
| Inlet Type | 3/8 in (F)NPT |
| Overload Protection | yes |
| Housing Material | Nylon |
| Agency Compliance | UL |
| Amps | 1.7 A |
| Standards | cCSAus Listed |
| Flow Rate @ 5 ft of Head (Maximum) | 205 gph |
| Maximum Feet of Head | 12 ft |
| Compatible with Media Type | Oil |
| Pumping Application | Air Conditioners, Machine Tool Coolants, Mild Acids, Recirculation, Submersible, Water Displays, Water Transfer |
| Pump Housing Material | Cast Aluminum |
| Feet of Head (Minimum) | 1 ft |
| Minimum Flow Rate | 0 gph |
| Series | 2E-38N |
| Duty Cycle | Continuous |
| Intake Type | NPT |
| Nameplate Voltage | 115V AC |
| Flow Rate @ 10 ft of Head (Maximum) | 70 gph |
| Maximum Media Temperature | 120 Degrees F |
| Discharge Type | NPT |
| Horsepower | 1/40 hp |
| Flow Rate @ 1 ft of Head (Maximum) | 300 gph |
| Maximum Flow Rate | 300 gph |
| Seal Type | Mechanical |
| Frequency | 60 Hz |
| Motor Sealing | Oil-Filled |
Description

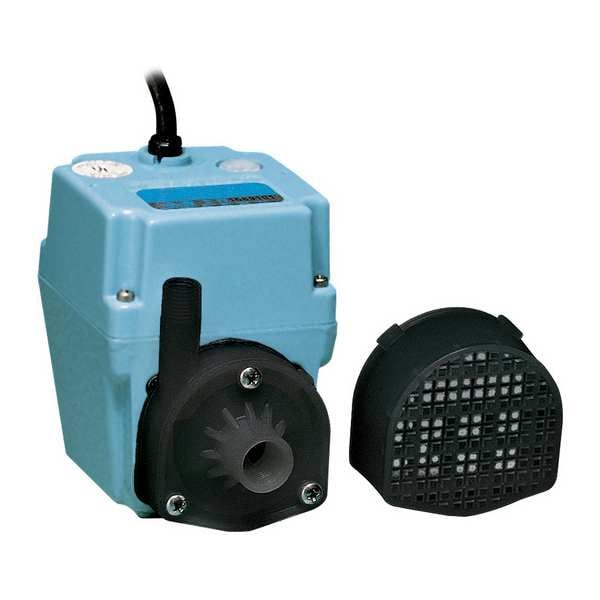

The Little Giant Pump 502203 is a 1/40 hp 115V condensate pump with a centrifugal pump design. This pump moves collected condensate away from HVAC equipment, utilizing a nylon impeller and nitrile seal. It is compatible with 3/8 in intake and 1/4 in discharge pipe sizes.
