- Voltage: 115V AC
- Phase: Single
- Horsepower: 2/5 hp
- Compatible Discharge Pipe Size: 1 1/4 in
- Compatible Intake Pipe Size: 1 1/4 in
- For Discharge Pipe Diameter: 1 1/4 in
Specifications
| Part Number | 182212-842 |
| Brand | Armstrong |
| Voltage | 115V AC |
| Phase | Single |
| Horsepower | 2/5 hp |
| Series | E12.2B |
| Pump Type | Standard |
| Face to Face Dimension | 6 13/32 in |
| Manufacturer Warranty Length | 2.5 yr |
| Overall Length | 9.3 in |
| Overall Height | 6.4 in |
| Compatible Discharge Pipe Size | 1 1/4 in |
| Overall Width | 4.2 in |
| Compatible Intake Pipe Size | 1 1/4 in |
| For Discharge Pipe Diameter | 1 1/4 in |
| For Inlet Pipe Diameter | 1 1/4 in |
| Item | Circulating Pump |
| Number of Speeds | 1 |
| Maximum Feet of Head | 57 ft |
| Connection Type | Flange |
| Impeller Material | Plastic |
| Includes | Thermal Overload Protection |
| Standards | CSA Certified, ETL, NSF 372 |
| Amps | 8.2 A |
| Electrical Connection Type | Hardwired |
| Compatible Media Type | 30% Glycol, Water |
| Wetted Material | Bronze |
| Minimum Media Temperature | -4 Degrees F |
| For Use With Potable Systems | Yes |
| Number of Intakes | 2 |
| Flange or Union Included | No |
| Maximum RPM | 3,600 RPM |
| Maximum Flow Rate @ 15 Feet of Head | 42 gpm |
| Maximum Flow Rate @ 40 Feet of Head | 22 gpm |
| Maximum Flow Rate @ 50 Feet of Head | 10 gpm |
| Frequency | 60 Hz |
| Body Gasket Material | EPDM |
| Pump Mounting Position | Horizontal |
| Maximum Flow Rate @ 25 Feet of Head | 34 gpm |
| Maximum Flow Rate @ 30 Feet of Head | 32 gpm |
| Maximum Flow Rate @ 20 Feet of Head | 38 gpm |
| Series Family | E.2 |
| Pump Housing Material | Bronze |
| Maximum Flow Rate @ 10 Feet of Head | 47 gpm |
| Rotor Type | Dry |
| Maximum Operating Pressure | 150 psi |
| Maximum Flow Rate @ 1 Feet of Head | 52 gpm |
| Maximum Flow Rate @ 5 Feet of Head | 49 gpm |
| Nameplate Voltage | 120V AC |
| Motor Enclosure Design | Open Drip Proof |
| Maximum Media Temperature | 230 Degrees F |
| Number of Flange Mounting Holes | 2 |
| Connection Standard | Flange |
| Flow Rate - Maximum | 53 gpm |
| Media Temperature - Maximum | 230 Degrees F |
| Includes Flange | No Flange Included |
| For Low Lead Compliance Level | CE |
| Media Temperature - Minimum | -4 Degrees F |
| Operating Pressure - Maximum | 150 psi |
| Includes Union | No Union Included |
| Feet of Head - Maximum | 57 ft |
| Mounting Orientation | Horizontal |
| Full Load Current | 8.2 A |
| Includes Volute | No Volute Included |
| Pump Casing Material | Bronze |
| Revolutions Per Minute - Maximum | 3,600 RPM |
| NSF Certifications for Food and Drinking Water | NSF 372 |
Description

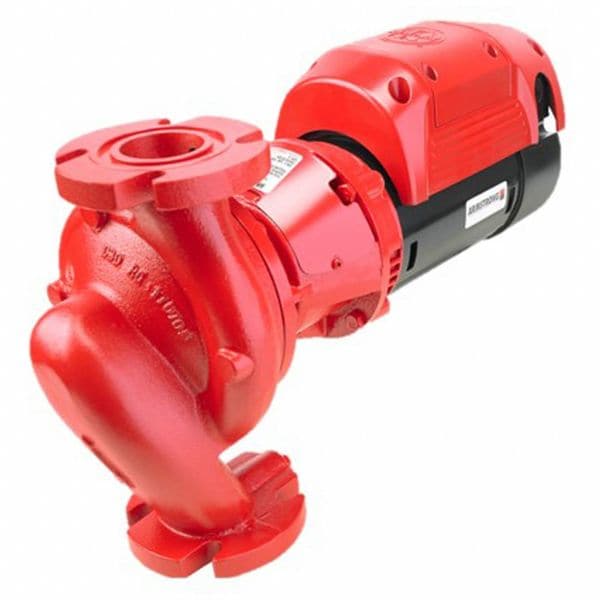

The Armstrong 182212-842 is a standard circulating pump, part of the E12.2B series. This pump circulates fluid in a system and operates on 115V AC single-phase power with a 2/5 hp motor.
