- Voltage: 115V AC
- Phase: Single
- Horsepower: 1/6 hp
- Inlet/Outlet Size: 1-1/4 in
- Compatible Intake Pipe Size: 1 1/4 in
- Compatible Discharge Pipe Size: 1 1/4 in
Specifications
| Part Number | 182202-659 |
| Brand | Armstrong |
| Voltage | 115V AC |
| Phase | Single |
| Horsepower | 1/6 hp |
| Inlet/Outlet Size | 1-1/4 in |
| Series | E9.2 |
| Face to Face Dimension | 6 3/8 in |
| Compatible Intake Pipe Size | 1 1/4 in |
| Overall Width | 4.2 in |
| Compatible Discharge Pipe Size | 1 1/4 in |
| Manufacturer Warranty Length | 2 yr |
| Overall Length | 7.1 in |
| Overall Height | 6.4 in |
| For Discharge Pipe Diameter | 1 1/4 in |
| For Inlet Pipe Diameter | 1 1/4 in |
| Item | Hydronic Circulating Pump |
| Pump Type | Standard |
| Number of Speeds | 1 |
| Max. GPM @ Head | 31 gpm @ 1 ft |
| Maximum Feet of Head | 43 ft |
| Min. GPM @ Head | 2 gpm @ 44 ft |
| Connection Type | Flange |
| Shut-Off | 43 ft |
| Impeller Material | Plastic |
| Thermal Protection | yes |
| Mechanical Seal | Silicon Carbide Enviroseal Coupled with Viton(R) Elastomer |
| Shaft Material | Stainless Steel |
| Compliance | NSF-372 |
| Drive Type | Direct |
| Features | Compact, High Performance, Permanently Lubricated Ball Bearings |
| Pump Mount | In Line |
| Loop Configuration | Closed |
| Includes | Flange Gaskets |
| Amps | 2.0 A |
| Best Efficiency GPM @ Head | 22 gpm @ 21 ft |
| Series Family | E.2 |
| Maximum Flow Rate @ 40 Feet of Head | 4 gpm |
| Pump Housing Material | Cast Iron |
| Nameplate Voltage | 120V AC |
| Number of Intakes | 2 |
| Maximum Flow Rate @ 1 Feet of Head | 38 gpm |
| Compatible Media Type | Water |
| Maximum Flow Rate @ 15 Feet of Head | 28 gpm |
| For Use With Potable Systems | No |
| Body Gasket Material | EPDM |
| Maximum Flow Rate @ 50 Feet of Head | [DELETE] |
| Maximum Flow Rate @ 20 Feet of Head | 22 gpm |
| Maximum Flow Rate @ 5 Feet of Head | 36 gpm |
| Maximum Operating Pressure | 150 psi |
| Maximum Flow Rate @ 30 Feet of Head | 14 gpm |
| Frequency | 60 Hz |
| Maximum RPM | 3,250 RPM |
| Flange or Union Included | Yes |
| Maximum Flow Rate @ 25 Feet of Head | 18 gpm |
| Maximum Flow Rate @ 10 Feet of Head | 32 gpm |
| Maximum Media Temperature | 230 Degrees F |
| Minimum Media Temperature | 32 Degrees F |
| Number of Flange Mounting Holes | 2 |
| Pump Casing Material | Cast Iron |
| Media Temperature - Minimum | 32 Degrees F |
| For Low Lead Compliance Level | CE |
| Media Temperature - Maximum | 230 Degrees F |
| Feet of Head - Maximum | 43 ft |
| Includes Flange | Flange Included |
| Full Load Current | 2.0 A |
| Connection Standard | Flange |
| Includes Volute | No Volute Included |
| Flow Rate - Maximum | 40 gpm |
| Motor Enclosure Design | Open Drip Proof |
| Includes Union | No Union Included |
| Revolutions Per Minute - Maximum | 3,250 RPM |
| Operating Pressure - Maximum | 150 psi |
Description

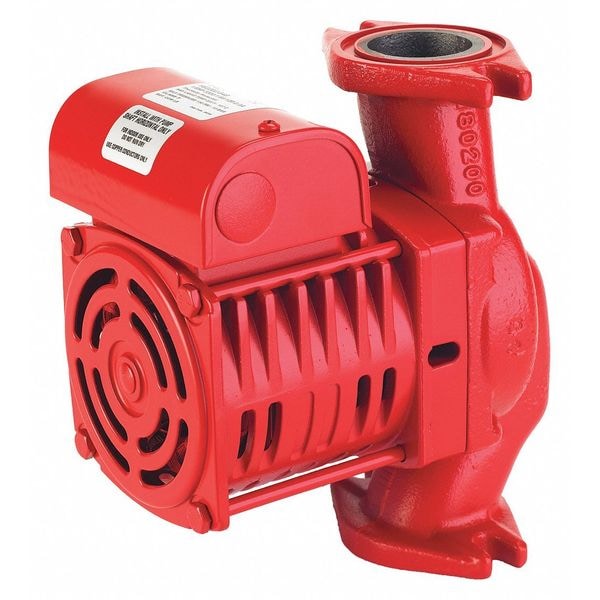

The Armstrong 182202-659 is a hydronic circulating pump from the E9.2 series. This standard pump circulates water in a closed hydronic system, operating on 115V AC single-phase power with 1/6 hp. It uses 1 1/4-inch intake and discharge pipe connections.
