- Nameplate Voltage: 115V AC
- Compatible Intake Pipe Size: 2 in
- Drain Port Size: 1 1/2 in
- Compatible Discharge Pipe Size: 1 1/2 in
- Overflow Port Pipe Size: 2 in
- Inlet Diameter: 2 in
Specifications
| Part Number | 160029 |
| Brand | Hoffman |
| Overall Width | 6.75 in |
| Electrical Connection Type | Hardwired |
| Pump Mounting Position | Vertical |
| Nameplate Voltage | 115V AC |
| Discharge Connection Style | NPT |
| Overall Height | 7.5 in |
| Compatible Intake Pipe Size | 2 in |
| Drain Port Size | 1 1/2 in |
| Manufacturer Warranty Length | 20 yr |
| Compatible Discharge Pipe Size | 1 1/2 in |
| Overflow Port Pipe Size | 2 in |
| Overall Length | 7.31 in |
| Inlet Diameter | 2 in |
| Overflow Port Pipe Diameter | 2 in |
| Discharge Diameter | 3/4 in |
| Drain Port Diameter | 1 1/2 in |
| Item | Condensate Return System |
| Number of Pumps | 1 |
| Series | Watchman |
| Tank Capacity | 6 gal |
| Pump Housing Material | Cast Iron |
| Maximum RPM | 3,500 RPM |
| Pump Type | Condensate Return |
| Maximum Media Temperature | 200 Degrees F |
| Intake Connection Style | NPT |
| Maximum Feet of Head | 9 ft |
| Motor Enclosure Design | Open Drip Proof |
| Impeller Material | Bronze |
| Standards | UL Listed |
| Amps | 20 A |
| Phase | Single |
| Frequency | 60 Hz |
| Compatible Media Type | Water |
| Pump Activation Type | Float Switch |
| Tank Material | Cast Iron |
| Body Gasket Material | Carbon/Ceramic |
| Equivalence of Direct Radiation Rating | 6,000 |
| Series Family | WC |
| Horsepower | 1/3 hp |
| Pump Casing Material | Cast Iron |
| Pump System Design | Simplex |
| Discharge Gender | Female |
| Flow Rate - Maximum | 34 gpm |
| Inlet Gender | Female |
| Maximum Flow Rate @ 30 Feet of Head | 33 gpm |
| Discharge Standard | NPT |
| Tank Orientation | Horizontal |
| Revolutions Per Minute - Maximum | 3,500 RPM |
| Mounting Orientation | Vertical |
| Inlet Standard | NPT |
| Feet of Head - Maximum | 52 ft |
| Media Temperature - Maximum | 200 Degrees F |
| Full Load Current | 20 A |
| Maximum Flow Rate @ 40 Feet of Head | 26 gpm |
| Maximum Flow Rate @ 50 Feet of Head | 12 gpm |
| Discharge Pressure | 20 psi |
Description

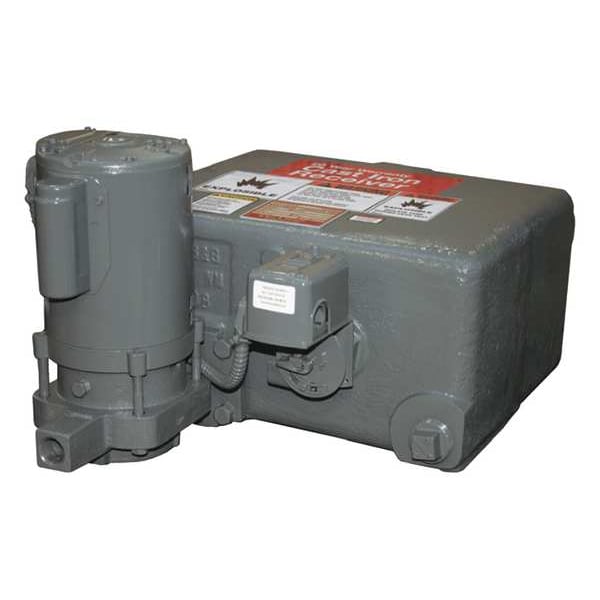

The Hoffman 160029 Watchman Series Condensate Return System is a hardwired 115V AC condensate pump with a 1/3 hp motor. This condensate return system collects and pumps condensate from HVAC equipment, featuring a 6-gallon tank capacity and 1 1/2 in NPT discharge connection.
