- Frequency: 50/60 Hz
- Control Voltage: 18 to 30V AC
- Minimum Operating Temperature: -40 Degrees F
- Input Voltage: 120V AC, 240V AC, 24V AC
- Maximum Operating Temperature: 176 Degrees F
Specifications
| Part Number | 50E47U-843 |
| Brand | White-Rodgers |
| Thermostat Anticipator Setting | No Thermostat Anticipator |
| Overall Depth | 1 3/8 in |
| OEM Replacement Part Number | 283, 35-65, 66, 780-787, S8910U |
| Board Type | Non-Integrated Board |
| Frequency | 50/60 Hz |
| Overall Height | 5 1/2 in |
| Overall Width | 4 in |
| Lock Out Time | 687 sec |
| Control Voltage | 18 to 30V AC |
| Product Type | Hot Surface Ignition Module |
| Minimum Operating Temperature | -40 Degrees F |
| Input Voltage | 120V AC, 240V AC, 24V AC |
| Automatic Reset Time | 1 hr |
| Includes | (4) 1 in Sheet Metal Mounting Screws, (6) 3/16 in QC Crimp on Terminals, 1/4 in 14-16 AWG QC and Shrink Wrap Sleeve, 11 Pin Harness Assembly, 5047U-843 Ignition Module, Local Flame Sense Jumper Wire (Installed on Module) |
| Application | Boilers, LP/Natural Gas Furnaces, Infrared and Tube Heaters, Ovens, Unit Heaters, Water Heaters |
| Replacement Type | Universal |
| Item | Ignition Control |
| Ignition Cycle Time | 45 seconds (HSI) |
| For Fuel Type | LP, Natural Gas |
| Compatible with Series | 50E47-843 |
| Pre-Purge Time | 45 sec |
| Standards | CSA |
| Maximum Input Current | 800 mA |
| Number of Retries | 3 |
| Main Valve Current Output | 4 A |
| Flame Sensor Current Output | 0.5 uA |
| Maximum Operating Temperature | 176 Degrees F |
| Compatible with Brand | Fenwal, Honeywell, ICM, Robertshaw, UTEC, White-Rodgers |
Description

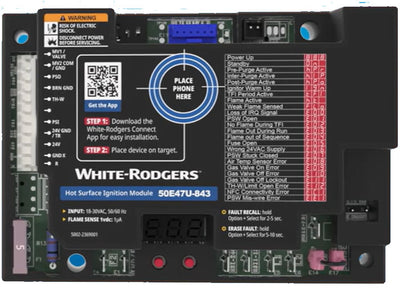

The White-Rodgers 50E47U-843 is a universal hot surface ignition module for non-integrated boards. This ignition control operates at 18 to 30V AC and 50/60 Hz, with input voltage options of 120V AC, 240V AC, or 24V AC. It is used with boilers, LP/natural gas furnaces, infrared and tube heaters, ovens, unit heaters, and water heaters.
