- BtuH Capacity: 280,000 BtuH
- Inlet Size: 3/4 in
- Outlet Size: 3/4 in
- Pilot Port Connection Size: 1/4 in
- Pressure Tap Connection Size: 1/8 in
- Port Connection Size: 3/4 in
Specifications
| Part Number | 36C03-400 |
| Brand | White-Rodgers |
| BtuH Capacity | 280,000 BtuH |
| Coil Volts | 24 V |
| Gas Type | NG/LP |
| Ignition Type | Standing Pilot |
| Inlet Size | 3/4 in |
| Outlet Size | 3/4 in |
| Pilot Port Connection Size | 1/4 in |
| Overall Depth | 2 7/8 in |
| Pressure Tap Connection Size | 1/8 in |
| Port Connection Size | 3/4 in |
| Overall Length | 3 15/16 in |
| Valve Type | Fast Opening |
| For Use With | Furnaces |
| Amps AC | 0.41 A |
| Ambient Temp. Range | -40 Degrees to 175 Degrees F |
| Item | Gas Valve |
| LP Conversion Kit | No |
| Pressure Setting Range | 2.5 to 5.0 in wc |
| Flow Direction | Straight-Thru |
| Max. Inlet Pressure | 1/2 psi |
| Side Taps | No |
| Standards | CSA Approved |
| Inlet Pressure Tap | Yes |
| Manufacturer Series | 36C |
| Operating Temperature - Maximum | 175 Degrees F |
| Pilot Port Connection Type | Compression |
| Includes Pilot Generator Kit | Pilot Generator Kit Not Included |
| Heating Capacity - Maximum | 280,000 BtuH |
| Includes On/Off Switch | On/Pilot/Off Switch Included |
| For Media | Liquid Propane, Natural Gas |
| Includes Conversion Kit | Conversion Kit Included |
| Sensing Type | Flame Sensor |
| Valve Design | Single |
| Includes Pressure Regulator | Pressure Regulator Included |
| Includes Pressure Tap | Pressure Tap Inlet Included, Pressure Tap Outlet Included |
| Includes Side Taps | Side Taps Not Included |
| Current | 0.23 A |
| Reducer Bushings Included | None |
| Installation Orientation | Vertical |
| Includes Thermostat | Mechanical Thermostat Not Included |
| Voltage | 24V AC |
| Pressure Tap Connection Type | NPT |
| Operating Temperature - Minimum | -40 Degrees F |
| Pilot Type | Standing Pilot |
| Port Connection Gender | Female |
| Port Connection Type | NPT |
| Opening Characteristic | Fast Opening |
Description

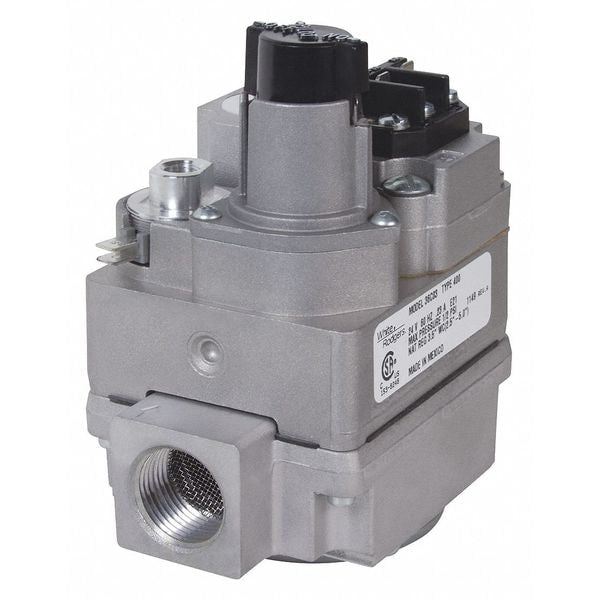

The White-Rodgers 36C03-400 is a fast-opening gas valve for natural gas or LP. It is a standing pilot valve with a 280,000 BtuH capacity, designed for use with furnaces.
