- Voltage: 24
- Amps AC: 0.45 A
- Input Voltage: 120V AC, 24V AC
- Frequency: 50/60 Hz
- Maximum Operating Temperature: 175 Degrees F
- Control Voltage: 24V AC
Specifications
| Part Number | 21V51U-843 |
| Brand | White-Rodgers |
| Gas Type | LP/NG |
| Width | 5 1/4 in |
| Probe Length | 15 1/2 in |
| Control Volts | 24 V |
| Voltage | 24 |
| Depth | 1 1/4 in |
| Lead Length | 15 1/2 in |
| Height | 8 in |
| Overall Depth | 1 1/4 in |
| Overall Width | 5 1/4 in |
| Overall Height | 8 in |
| Includes | Ignitor |
| Prepurge Time (Sec.) | 15 sec |
| Electrical Connections | 1/4 Spade Terminals And Molex Plugs |
| Amps AC | 0.45 A |
| Electrical Ratings | 24V AC |
| For Use With | Residential, Commercial Heating Equipment |
| Igniter Warm-Up Time (Sec.) | 17 sec |
| Type | Universal Integrated Two-Stage |
| Item | Integrated Furnace Control |
| Retries | 2 |
| Standards | CSA Certified |
| Product Type | Integrated Furnace Control |
| Input Voltage | 120V AC, 24V AC |
| Cool Delay to Fan On | 5 sec |
| Cool Delay to Fan Off | 60 sec |
| Electrical Connection Type | 1/4 in Spade Terminals, Molex Plug |
| Board Type | Integrated Board |
| Number of Retries | 2 |
| Igniter Warm Up Time | 17 sec |
| Thermostat Anticipator Setting | No Thermostat Anticipator |
| Pre-Purge Time | 15 sec |
| Frequency | 50/60 Hz |
| Main Valve Current Output | 1.5 A |
| Lock Out Time | 5 min |
| Compatible with Brand | Goodman, Lennox, Trane, White-Rodgers |
| Heat Delay to Fan Off | 180 sec |
| Number of Fan Speeds | 3 |
| Maximum Input Current | 45 A |
| Maximum Operating Temperature | 175 Degrees F |
| For Fuel Type | LP, Natural Gas |
| OEM Replacement Part Number | See full list of OEM Replacement Part Number 18M9901,20300002,20300004,20300006,20300006S,21V51U-843,49M5901,50V51-243,50V51-288,50V51-289,50V51-290,50V51-507,50V61-120,50V61-143,50V61-288,50V61-289,50V61-480,50V61-486,50V61-507,B1809925,B1809927,B1809927S,CNT03078,CNT04018,CNT04352,D156245P01,D34142P01,KIT15815,PCB00106,PCB00106S,PCBB0106,PCBB0106S,PCBB0107S,X13650840010 |
| Control Voltage | 24V AC |
| Ignition Cycle Time | 90 seconds (HSI), 15 seconds (pre-purge), 15 seconds (post purge) |
| Replacement Type | Universal |
| Automatic Reset Time | 1 hr |
| Heat Delay to Fan On | 45 sec |
| Flame Sensor Current Output | 0.3 uA |
| Minimum Operating Temperature | -40 Degrees F |
Description

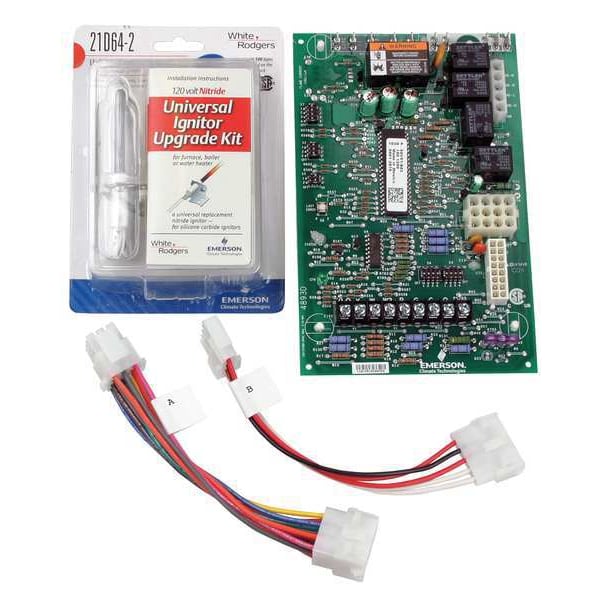

The White-Rodgers 21V51U-843 is a universal integrated two-stage hot surface igniter control. It provides hot surface ignition for LP/NG gas systems, operating at 24V AC and 0.45 A. This control is for use with residential and commercial heating equipment and includes an ignitor with 1/4 spade terminals and Molex plugs.
