- Maximum Operating Temperature: 175 Degrees F
- Frequency: 60 Hz
- Input Voltage: 18 to 30V AC
- Minimum Operating Temperature: -40 Degrees F
- Control Voltage: 120V AC
Specifications
| Part Number | 21V51D-751 |
| Brand | White-Rodgers |
| Heat Delay to Fan Off | 120 sec |
| Application | LP/Natural Gas Furnaces |
| Fan Speed Type | High Heat, Low Heat |
| For Fuel Type | LP, Natural Gas |
| Replacement Type | OEM |
| Overall Height | 7 1/8 in |
| Overall Depth | 1 5/8 in |
| Overall Width | 8 1/4 in |
| Pre-Purge Time | 15 sec |
| Flame Sensor Current Output | 0.1 uA |
| Automatic Reset Time | 1 hr |
| Product Type | Integrated Furnace Control |
| Board Type | Integrated Board |
| Ignition Cycle Time | 17 seconds (HIS) |
| Maximum Operating Temperature | 175 Degrees F |
| Compatible with Brand | Carrier |
| Includes | All Required Harnesses |
| Cool Delay to Fan On | 3 sec |
| Item | Ignition Control |
| Heat Delay to Fan On | 60 sec |
| OEM Replacement Part Number | 1172551, 1172809, 1172551, 1184408, 325879-751, CEPL130455-01, CEPL130591-01, CEPL130591-41, |
| Igniter Warm Up Time | 17 sec |
| Thermostat Anticipator Setting | No Thermostat Anticipator |
| Main Valve Current Output | 1.5 A |
| Frequency | 60 Hz |
| Standards | CSA |
| Input Voltage | 18 to 30V AC |
| Number of Retries | 3 |
| Minimum Operating Temperature | -40 Degrees F |
| Lock Out Time | 240 sec |
| Maximum Input Current | 0.8 A |
| Cool Delay to Fan Off | 90 sec |
| Control Voltage | 120V AC |
Description

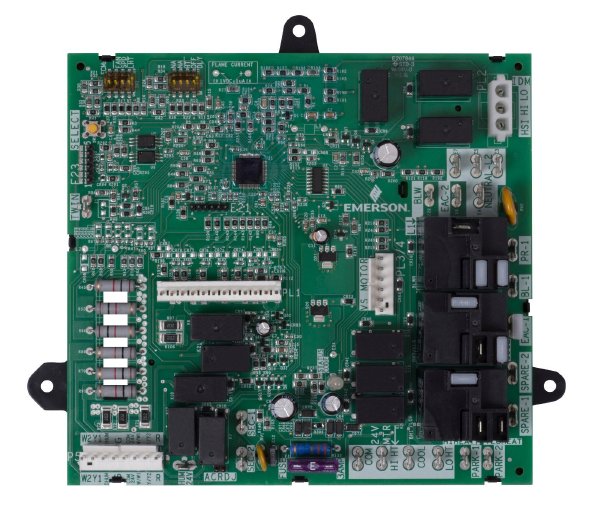

The White-Rodgers 21V51D-751 is an OEM replacement integrated furnace control board for LP and natural gas furnaces. This two-stage hot surface ignition control operates on 18 to 30V AC at 60 Hz, managing high and low heat fan speeds with a flame sensor current output of 0.1 uA. It is designed for use in LP/natural gas furnaces and has a maximum operating temperature of 175 degrees Fahrenheit.
