- Voltage: 24VAC
- Display Size: 6 sq in
- Digit Size: Easy Read
- Temporary Program Override: Yes
- Temp. Settings per Day: 0, 2, 4
- Temperature Limiting: Yes
Specifications
| Part Number | 1F95-0671 |
| Brand | White-Rodgers |
| Voltage | 24VAC |
| Stages Heat | 4 |
| Mounting Type | Horizontal |
| Color | White |
| Control Range | 45 Degrees to 99 Degrees F |
| Height | 4 5/8" |
| Width | 5 7/8" |
| Depth | 1 1/4 in |
| Display Size | 6 sq in |
| Digit Size | Easy Read |
| Overall Width | 6 1/2 in |
| Overall Depth | 1 5/8 in |
| Overall Height | 4 3/16 in |
| Item | Low Voltage Thermostat |
| System Switching | Auto-Heat-Cool-Off-Emergency |
| Stages Cool | 2 |
| Dual Transformer Compatible | Yes |
| Power Method | Hardwired/Battery/Power Stealing |
| 750mV Compatible | Yes |
| Programs per Week | 7, 5-1-1 |
| Includes | Mounting Hardware |
| Temporary Program Override | Yes |
| Batteries Included | Yes |
| Automatic Changeover | Yes |
| Temp. Settings per Day | 0, 2, 4 |
| Battery Backup | Yes |
| Temperature Limiting | Yes |
| Remote Sensing Capability | Yes |
| Low Battery Indicator | Yes |
| Fan Switching | Auto-On-Program |
| Programmable Fan | Yes |
| Footnotes | 1, 2, 3, 4, 6, 7, 8 |
| Display Type | Digital |
| Display Color | Blue |
| Key Pad Lockout | Yes |
| WiFi Capability | No |
| Temporary Temperature Hold | Yes |
| For Use With | Heat Only, Cool Only, Heating and Cooling, Single Stage Gas, Oil, Electric, Multi-Stage Gas, Oil, Electric, Heat Pump, Millivolt, 3-wire Zone Valve |
| Terminal Designations | -, +, 6, C, G, L, O/B, RC, RH, S, W/E, W2, Y, Y2 |
| Filter Indicator | Yes |
| Features | Blue Screen |
| Dehumidification Control | No |
| Humidification Control | No |
| Standards | California Title 24 |
| Mounting | Horizontal |
| Type | Digital Programmable Multi Stage H/C or HP |
| Control Type | Push Button |
| Stages | 2H/2C Conventional, 4H/2C Heat Pump |
| Sensor Type | Cooling, Heating |
| Number of Cooling Stages - Heat Pump System | 2 |
| Battery Type | (2) AA Batteries |
| Electrical Connection Type | Hardwired |
| Sensor Location | Remote |
| Application | Heat and Cool |
| Operating Temperature Range | 32 Degrees to 105 Degrees F |
| Temperature Sensitivity | +/-1 Degrees F |
| Backlit Screen Color | Blue |
| Mounting Direction/Shape | Horizontal |
| Temperature Scale | Fahrenheit/Celsius |
| Backlit Screen | Yes |
| Smart Connectivity | No Connectivity |
| Includes Positive Off | Yes |
| Number of Cooling Stages - Conventional System | 2 |
| Includes Batteries | Yes |
| Differential Heat | 0.5 Degrees F, 0.75 Degrees F, 1.9 Degrees F |
| System Settings | Auto-Cool-Emergency Heat-Heat-Off |
| Number of Heating Stages - Heat Pump System | 4 |
| Minimum Operating Temperature | 32 Degrees F |
| Millivolt Compatible | Yes |
| Number of Zones | 2 |
| Temperature Control Range | 45 Degrees to 99 Degrees F |
| Programming Capability | 5-1-1, 7 Day |
| Housing Color | White |
| Changeover Type | Automatic |
| Thermostat Type | Low Voltage |
| Fan Settings | Auto-On |
| Backlit Type | Touch Activated or Continuous with Common Wire |
| Temperature Readout | Yes |
| Temperature settings per day | 0, 2, 4 |
| Operating Humidity Range | 0% to 90% RH |
| Maximum Operating Temperature | 105 Degrees F |
| Differential Cool | 0.9 Degrees F, 1.2 Degrees F, 1.7 Degrees F |
| System/Fan Settings | Auto-Cool-Emergency Heat-Heat-Off/Auto-On |
| Differential Type | Adjustable |
| Compatible System Type | Electric Forced Air Furnaces, Heat Pump with Aux, Millivolt, Gas Forced Air Furnaces |
| Number of Heating Stages - Conventional System | 2 |
| Temperature Differential | 0.6 Degrees F, 1.2 Degrees F |
| Contact Rating | 20 to 30V AC |
| Maximum Control Temperature | 99 Degrees F |
| Filter Change Reminder | Yes |
| Minimum Operating Humidity | 0 % |
| Shape | Rectangle |
| Minimum Control Temperature | 45 Degrees F |
| Frequency | 50 Hz, 60 Hz |
| Application/Stages | Heat and Cool; 2H/2C Conventional, 4H/2C Heat Pump |
| Mounting Direction | Horizontal |
| Maximum Operating Humidity | 90 % |
Description

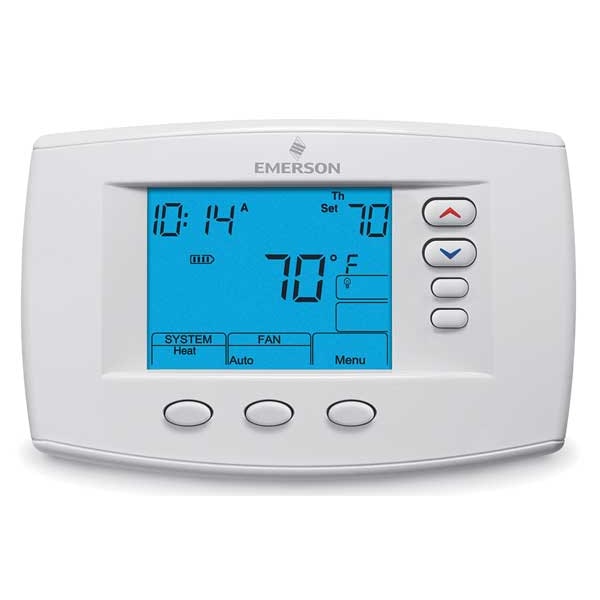

The White-Rodgers 1F95-0671 is a low voltage thermostat. It functions to control heating and cooling systems, supporting 4 heat and 2 cool stages with 7-day, 5-1-1 programming. This thermostat operates on 24VAC and is compatible with both dual transformer and 750mV systems, with hardwired, battery, or power stealing power options.
