- Voltage: 24VAC
- Digit Size: Easy Read
- Temporary Program Override: Yes
- Temp. Settings per Day: 0
- Temperature Limiting: Yes
- Temporary Temperature Hold: Yes
Specifications
| Part Number | 1F85U-42NP |
| Brand | White-Rodgers |
| Voltage | 24VAC |
| Stages Heat | 4 |
| Mounting Type | Horizontal |
| Color | Gray |
| Control Range | 45 Degrees to 99 Degrees F |
| Height | 3 3/4" |
| Width | 6" |
| Depth | 1 1/8 in |
| Overall Width | 6 in |
| Digit Size | Easy Read |
| Overall Height | 3 3/4 in |
| Overall Depth | 1 1/8 in |
| Item | 80 Series Thermostats |
| System Switching | Auto |
| Stages Cool | 2 |
| Dual Transformer Compatible | Yes |
| Power Method | Hardwired/Battery |
| 750mV Compatible | Yes |
| Display Color | Gray |
| Features | Continuous Backlight |
| Batteries Included | Yes |
| Automatic Changeover | Yes |
| Temporary Program Override | Yes |
| Low Battery Indicator | Yes |
| Temp. Settings per Day | 0 |
| Battery Backup | Yes |
| Temperature Limiting | Yes |
| Filter Indicator | No |
| Programmable Fan | No |
| Key Pad Lockout | Yes |
| Terminal Designations | C, G, L, O/B6, RC, RH, W/E, W2, Y, Y2 |
| Agency Compliance | Energy Aware |
| Temporary Temperature Hold | Yes |
| Fan Switching | Auto-On |
| Display Type | Digital |
| Humidification Control | No |
| Standards | Energy Aware |
| Dehumidification Control | No |
| Control Type | Slide Switch |
| Stages | 4H/2C Conventional, 4H/2C Heat Pump |
| Minimum Control Temperature | 45 Degrees F |
| Minimum Operating Humidity | 0 % |
| Programming Capability | Not Programmable |
| Filter Change Reminder | No |
| Number of Heating Stages - Conventional System | 4 |
| Maximum Operating Temperature | 150 Degrees F |
| System Settings | Auto |
| Frequency | 50 Hz, 60 Hz |
| Operating Temperature Range | -40 Degrees to 150 Degrees F |
| Application | Heat and Cool |
| Maximum Operating Humidity | 90 % |
| Maximum Control Temperature | 99 Degrees F |
| Minimum Operating Temperature | -40 Degrees F |
| Fan Settings | Auto |
| Backlit Type | Key Press or Continuous with Common Wire |
| Operating Humidity Range | 0% to 90% |
| Thermostat Type | Low Voltage |
| Mounting Direction/Shape | Horizontal |
| Number of Zones | 1 |
| Temperature Control Range | 45 Degrees to 99 Degrees F |
| System/Fan Settings | Auto/Auto |
| Changeover Type | Automatic |
| Mounting Direction | Horizontal |
| Includes Positive Off | Yes |
| Housing Color | Gray |
| Shape | Rectangle |
| Number of Heating Stages - Heat Pump System | 4 |
| Temperature Differential | 0.5 Degrees to 1.2 Degrees F |
| Number of Cooling Stages - Heat Pump System | 2 |
| Compatible System Type | Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux, Millivolt |
| Millivolt Compatible | Yes |
| Differential Type | Adjustable |
| Housing Material | Plastic |
| Amperage | 2.5 A |
| Electrical Connection Type | Hardwired |
| Number of Cooling Stages - Conventional System | 2 |
| Temperature Scale | Fahrenheit/Celsius |
Description

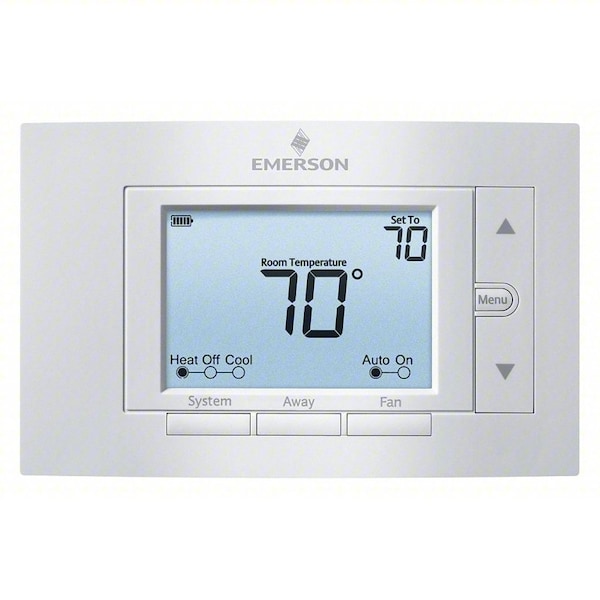

The White-Rodgers 1F85U-42NP is an 80 Series thermostat. This type of thermostat controls heating and cooling systems by sensing temperature and activating equipment. It operates on 24VAC and is compatible with 750mV systems and dual transformers, featuring a continuous backlight and temporary program override.
