- Voltage: 24VAC
- Sensing Bulb Diameter: 1/4 in
- Full Load Amps @ 120VAC: 5.8A (NC), 16A (NO)
- Voltage Range: 24V AC
- Full Load Amps @ 240VAC: 2.9A (NC), 8A (NO)
- Input Voltage: 24V AC
Specifications
| Part Number | ETC-112000-000 |
| Brand | Robertshaw |
| Type | Electronic Temperature Control |
| Voltage | 24VAC |
| Switch Action | Close on Rise, Open on Rise |
| Includes | 8 ft Foot Cable |
| Differential | 1 Degrees to 30 Degrees F |
| Height | 6 1/2 in |
| Width | 2 3/4 in |
| Sensing Bulb Length | 2 in |
| Sensing Bulb Dia. | 1/4 in |
| Depth | 2 1/2 in |
| Capillary Length | 96" |
| Overall Height | 6 1/2 in |
| Sensing Bulb Diameter | 1/4 in |
| Overall Depth | 2 1/2 in |
| Overall Width | 2 3/4 in |
| For Use With | Cooling, Heating, Refrigeration |
| Display Type | Digital |
| Number of Relay Inputs | 1 |
| Item | Temperature Control |
| Switch Type | SPDT |
| Control Range | -30 Degrees to 220 Degrees F |
| Standards | Class 4813 02, CSA Certified LR68340, UL File E94419, UL Guide No. XAPX |
| Thermostat Switch Type | SPDT |
| Full Load Amps @ 120VAC | 5.8A (NC), 16A (NO) |
| Voltage Range | 24V AC |
| Color | Gray |
| Enclosure Type | NEMA 1 |
| Full Load Amps @ 240VAC | 2.9A (NC), 8A (NO) |
| Sensor Type | Thermistor |
| Number of Relay Outputs | 1 |
| Number of Switches | 1 |
| Number of Stages | Single |
| Mounting | Vertical or Horizontal |
| Application | Cooling Control, Heating Control |
| Input Voltage | 24V AC |
| Display | LCD |
| Full Load Current @ 240V AC | 8 A |
| Product Type | Temperature Control |
| NEMA Rating | 1 |
| Contact Form | SPDT |
| Variable Output Voltage | No |
| Resistive Load Current @ 120V | 96 A |
| IP Rating | IP67 |
| Minimum Control Temperature | -30 Degrees F |
| Housing Color | Gray |
| Number of Sensor Inputs | 1 |
| Number of SPDT Outputs | 1 |
| Resistive Load Current @ 240V | 48 A |
| Power Consumption | 100 MVA |
| Compatible with Series | Universal |
| Maximum Control Temperature | 220 Degrees F |
| Horsepower @ 240V AC | 1 hp |
| Temperature Control Function | Heat or Cool |
| Full Load Current @ 120V AC | 16 A |
| Ambient Humidity | 0% to 95% RH |
| Housing Material | Polyethilene |
| Minimum Temperature Differential Setting | 1 Degrees F |
| Number of Sensors Included | 1 |
| Maximum Temperature Differential Setting | 30 Degrees F |
| Horsepower @ 120V AC | 1 hp |
Description

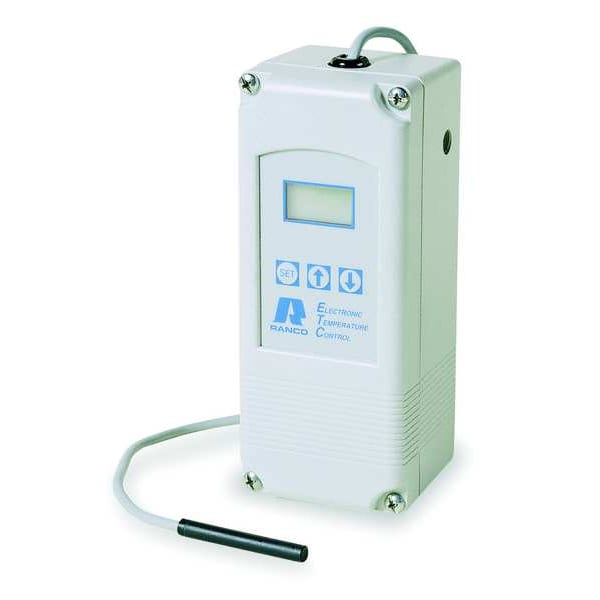

The Robertshaw ETC-112000-000 is an electronic temperature control with a digital display. This single-stage, SPDT control opens or closes on temperature rise, operating at 24VAC. It is used for cooling, heating, and refrigeration applications and carries UL and CSA certifications.
