- Voltage: 20 to 30V AC
- Temperature Limiting: Yes
- Temporary Temperature Hold: No
- Temporary Program Override: Yes
- Temperature Adjustment: Floating, Incremental
- Temperature Control Range: 40 Degrees F to 90 Degrees F
Specifications
| Part Number | TH6320ZW2007 |
| Brand | Resideo |
| Voltage | 20 to 30V AC |
| Dual Transformer Compatible | Yes |
| Temperature Limiting | Yes |
| Key Pad Lockout | Yes |
| Humidification Control | No |
| Overall Height | 4 1/16 in |
| Overall Width | 4 1/16 in |
| Overall Depth | 1 1/8 in |
| Item | Low Voltage Thermostat |
| Terminal Designations | C, E, G, K, L/A, O/B, R, RC, S, W, W2-AUX, Y, Y2 |
| Control Type | Touch Screen |
| Temporary Temperature Hold | No |
| Occupancy Sensor | Includes Remote Occupancy Sensor |
| Dehumidification Control | No |
| Battery Backup | Yes |
| Standards | IC Regulations RSS-GEN Compliant |
| Low Battery Indicator | Yes |
| Display Type | Digital |
| Temporary Program Override | Yes |
| Includes | Cover Plate, Mounting Hardware, UWP Mounting System |
| Number of Relay Outputs | 3 |
| Number of Relay Inputs | 3 |
| Differential Type | Fixed |
| Number of Heating Stages - Heat Pump System | 3 |
| Number of Heating Stages - Conventional System | 2 |
| Fan Settings | Auto-On-Circulate |
| Temperature Adjustment | Floating, Incremental |
| Compatible Software/Device | Z-Wave App |
| Programming Capability | 5-1-1, 5-2, 7-Day |
| Thermostat Type | Low Voltage |
| Number of Cooling Stages - Conventional System | 2 |
| Operating Humidity Range | 5% to 90% RH |
| Wireless System Compatibility | Z-Wave |
| Temperature Control Range | 40 Degrees F to 90 Degrees F |
| Frequency | 50 Hz, 60 Hz |
| Power Loss Settings Backup | Yes |
| Backlit Screen | Yes |
| System Settings | Heat-Off-Cool-Auto-EM Heat |
| Contact Rating | 20 to 30V AC |
| Housing Color | White |
| Temperature Differential | 1 Degrees F |
| Battery Type | (3) AA Batteries |
| Filter Change Reminder | Yes |
| Changeover Type | Automatic |
| Wireless | Yes |
| Electrical Connection Type | Hardwired |
| Temperature Scale | Fahrenheit/Celsius |
| Maximum Temperature Control | 90 Degrees F |
| Compatible System Type | Heat Pump with Aux |
| Number of Cooling Stages - Heat Pump System | 2 |
| Minimum Temperature Control | 40 Degrees F |
| Temperature settings per day | 4 |
| Shape | Rectangle |
| Temperature Readout | Yes |
| Application | Heat and Cool |
| Backlit Type | Touch Activated |
| Millivolt Compatible | No |
| External Power Source | Battery |
| Housing Type | Standard Housing |
| Includes Batteries | Yes |
| Mounting Direction | Horizontal |
| Housing Material | Plastic |
| Includes Positive Off | Yes |
| Contact Type | Electronic |
| Occupancy Sensor Compatibility | Z-Wave Sensors |
| Smart Capabilities | Remote Control, Z-Wave Plus |
Description

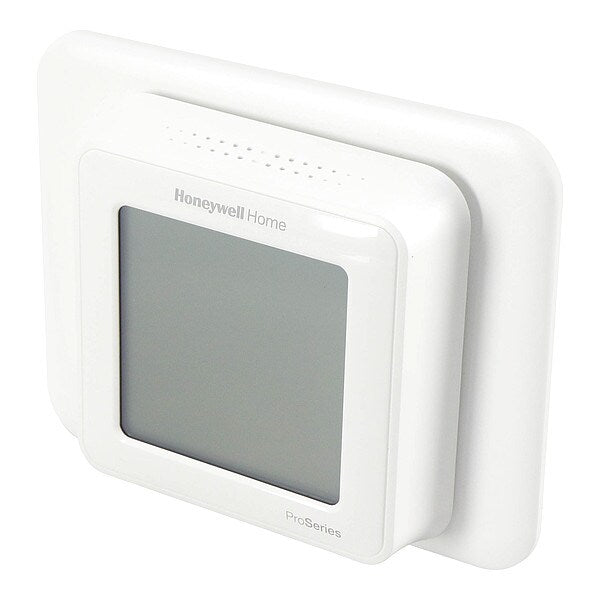

The Resideo TH6320ZW2007 is a low voltage thermostat with a touch screen control. This type of thermostat regulates heating and cooling systems by sensing temperature and activating equipment based on programmed or manual settings. It operates on 20 to 30V AC, is dual transformer compatible, includes a remote occupancy sensor, and is IC Regulations RSS-GEN Compliant.
