- Temp. Setting Range (F): 65 to 200
- Input Voltage: 12V DC, 240V AC
- Maximum Control Temperature: 200 Degrees F
- Minimum Control Temperature: 65 Degrees F
- Differential Temperature: 5 Degrees F to 30 Degrees F, Adjustable
- Burner Circuit Voltage Type: Millivolt
Specifications
| Part Number | L6006C1018 |
| Brand | Resideo |
| Application | Circulator, High Limit, Low Limit |
| Switch Type | SPDT |
| Depth | 2 in |
| Contact Rating @ 120V (A) | 8 A |
| Switch Action | Open/Close on Temp. Rise |
| Width | 2 in |
| Height | 5 5/8 in |
| Overall Depth | 2 3/4 in |
| Overall Height | 5 5/8 in |
| Overall Width | 2 in |
| Item | Strap On Hot Water Control |
| Temp. Setting Range (F) | 65 to 200 |
| Contact Rating @ 240V (A) | 5.1 A |
| Differential (Deg. F) | 5 to 30 Adj. |
| Control Type | Circulator, High-Limit, Low-Limit |
| Product Type | High/Low Limit Controller |
| Input Voltage | 12V DC, 240V AC |
| Standards | File No. LR95329-1, UL Component Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2 |
| Locked Rotor Current @ 240V | 30.6 A |
| Maximum Control Temperature | 200 Degrees F |
| Reset Type | Automatic Reset |
| Locked Rotor Current @ 120V | 48 A |
| Mounting Orientation | Horizontal, Vertical |
| Minimum Control Temperature | 65 Degrees F |
| Contact Form | SPDT |
| Differential Temperature | 5 Degrees F to 30 Degrees F, Adjustable |
| Full Load Current @ 120V AC | 8 A |
| Burner Circuit Voltage Type | Millivolt |
| Full Load Current @ 240V AC | 5.1 A |
| Sensor Location | Remote |
Description

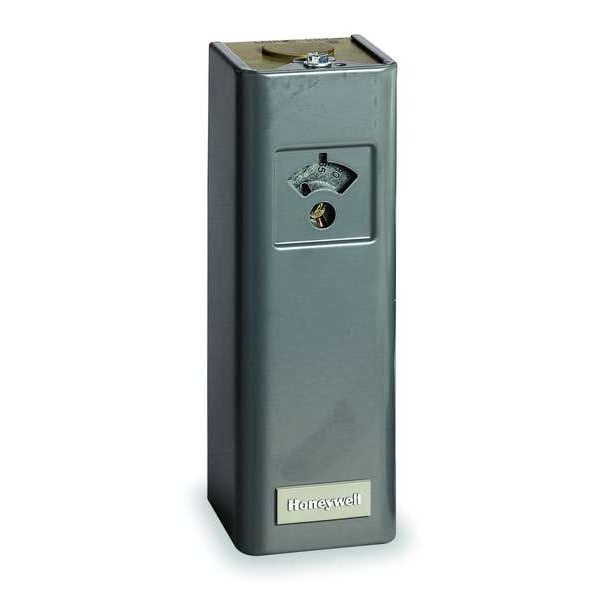

The Resideo L6006C1018 is a strap-on hot water control, functioning as a high/low limit controller. This SPDT aquastat regulates water temperature by controlling a circulator and enforcing high and low limits, with a temperature setting range of 65 to 200 degrees Fahrenheit and contact ratings of 8 A at 120V and 5.1 A at 240V.
